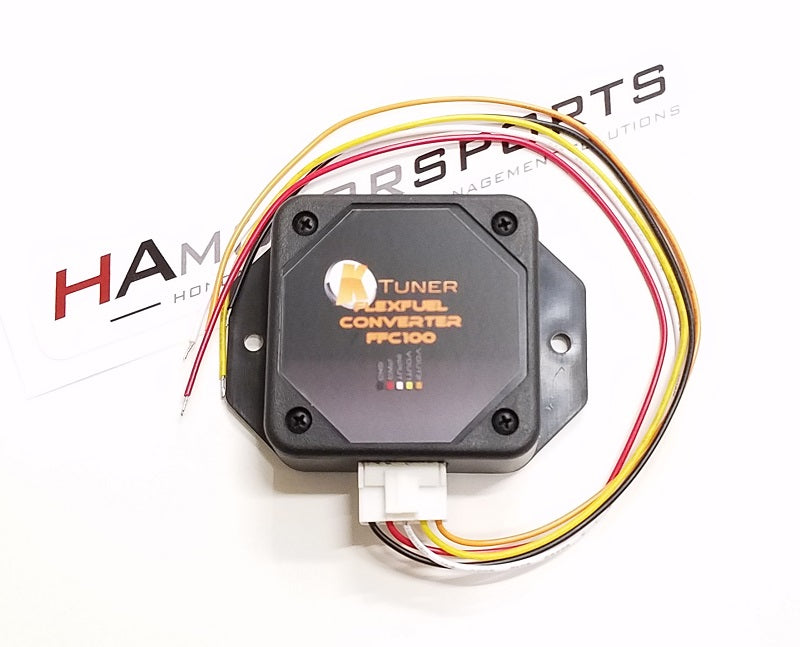

KTuner Flex-Fuel Converter for Flex Fuel (E85) Applications. The KTuner Flex-Fuel converter is for use on KTuner Flash applications to convert an ethanol content sensor's signal into a voltage that the ECU can use for flex fuel support.
Pinouts/wiring:
- Black - GND is ground
- Red - PWR is +12v switched power
- White - INPUT is the input from your ethanol content sensor
- Yellow - VOUT is the voltage output that represents ethanol content. The range is 0.5V for 0% ethanol to 4.5V for 100% ethanol. This Yellow wire is the wire that would run to the labeled ECU input used for flex fuel.
For application specific information, wiring, and setup info, see the
KTuner Help File
-
Can this be installed on one of the inputs on a ktuner r1 board?
Yes, it can be wired to the KTuner board as shown in the KTuner help file here: http://www.ktuner.com/KTunerHelp/revision_1_hardware_pinouts.htm
Thanks,
-
Can this be used with Ktuner 05-06 rsx version?
It is not needed on the 05-06 RSX when using an RSX calibration file type, you can log directly. See the KTuner help file for more info. Thanks!
