Hondata KPro4 [ includes installation service ]

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE.

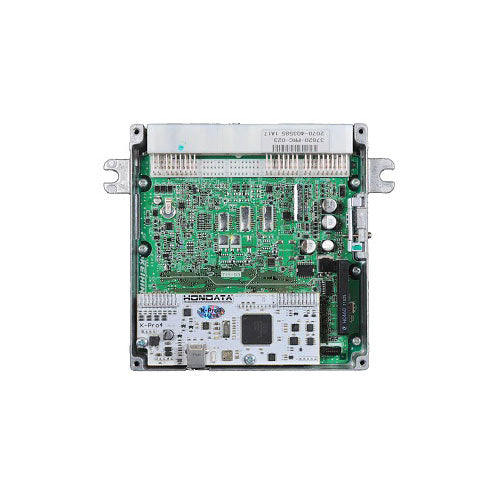

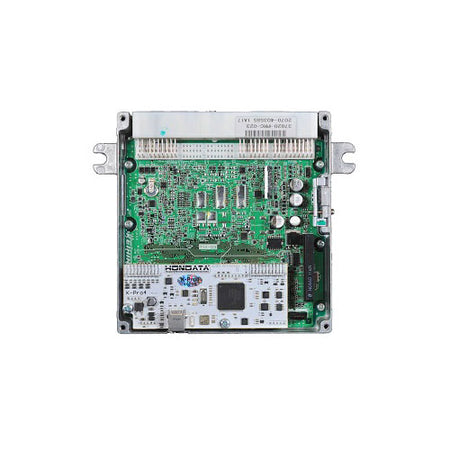

The Hondata K-Pro system consists of a circuit board (KPro) that is added to a Honda K Series ECU, plus Windows software (called Kmanager) which allows you to program the ECU as needed and datalog sensors to tune the vehicle.  A compatible Honda K series ECU is required and NOT included in price.  You will need to ship an appropriate ECU to us for the install of the Kpro.  Price includes FREE installation into customer provided ECU.  You MUST ship your ECU to us to have the Kpro installed.  You cannot purchase the Kpro and install it yourself per Hondata's policies.

If you don't have a compatible ECU to send in, see our Kpro ECU Packages for a complete ECU with Kpro.

We proudly have one of the fastest Kpro install turnaround times in the industry!  We install Kpro systems right here at our facility.  Most Kpro installs are completed and shipped back out within 1 business day!

What ECU's can I use with the Hondata KPro?

• For 2002-2004 Acura RSX Type-S, use the PRB ECU (ECU p/n 37820-PRB-A01 through A12, PRB-305)
• For 2002-2004 Acura RSX Base model with manual transmission, use the PND ECU (ECU p/n 37820-PND-A01 through A09)

• For 2002-2005 Honda Civic Si (EP3), use the PNF ECU
• For 2002-2004 Honda CRV with manual transmission, use the PPA or PPL manual transmission ECU.
• For K series swaps into older chassis (ie: 92-00 Civic, Integra, etc.) you can use any of the above, plus:
  • 02-04 RSX Base AUTO ECU (PND).  Requires moving the VSS wire as shown here.
  • 02-04 CRV AUTO ECU (PPA or PPL).  Requires moving the VSS wire as shown here.

The Kpro can work on other vehicles with the correct configuration. Here are additional vehicles that it can be used on:

• 05-06 Acura RSX base model with manual transmission - Requires an 02-04 RSX PND or PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor.  We have this available as a complete ECU package here: KPro 05-06 RSX Base ECU Package
• 05-06 Acura RSX Type-S - Requires an 02-04 RSX PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor.  We have this available as a complete package here: Kpro 05-06 RSX-S ECU Package

• 01-05 Honda Civic D17A with manual transmission - Requires 02-04 K Series ECU (PRB, PND, PNF) and custom Hondata cam gear.  We have this available as a complete package here: Kpro D17A ECU Package

• 00-05 Honda S2000 - Requires specially modified 02-04 RSX PRB ECU, special mounting bracket, and additional engine components to be changed.  We have this available as a complete package here: Kpro S2000 ECU Package

• 03-06 Honda Element with manual transmission - Requires specially modified 02-04 RSX PND ECU and conversion harness.  We have this available as a complete package here: Kpro Honda Element ECU Package


Where do I get the Kmanager software?

The Hondata Kmanager software is downloadable for free directly from Hondata's website here: http://www.hondata.com/kmanager

NOTE: This product is for those who already own a compatible K series ECU (listed above) and would like to have the Hondata Kpro4 installed into their own ECU. Will require shipping of your K series ECU to us for the install.

If you do not have a compatible ECU to send in, please take a look at one of our complete Hondata Kpro ECU packages.

How does the order process work?

1. Select the type of KPro you are purchasing from the drop-down menu.  Verify that the ECU you are sending in matches the type of Kpro you'd like to purchase.
2. Proceed through the checkout process.  The shipping you select and pay for at checkout is the return shipping, for shipping the completed ECU back to you once finished.  Submit your order at the end of the checkout process.
3. Package your ECU into any box that fits your ECU.  Be sure to package/pad it well to avoid damage in transit.
4. Write your order number on the outside of the box.
5. Ship to us using any shipping method you'd like.  Click here for our shipping address.
6. When we receive your ECU we will complete your install, then ship back to you using the shipping method you selected at checkout.
7. Have a question? Please don't hesitate to contact us.

All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

• ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
• ECU component/hardware failure due to faulty manufacturing.
• Wire harness failure due to incorrect construction.
• Product failure due to a manufacturing or assembly problem.
• Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

• ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
• Product being used in a way other than the intended use.
• Rear "warranty void if removed" sticker on ECU has been removed or altered.
• Failed, shorted, or corroded ECU board due to water damage.
• Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
• Wire harness failure due to improper use or rough handling.
• Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).

How the warranty process works:

If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
