**** Due to the temporary partial closure of the Hondata Facility in Torrance, CA from the COVID-19 Pandemic, we are experiencing extended delays in installing Kpro systems into customer provided ECU's. Please allow 4-6 weeks for the install from when we receive your ECU ****

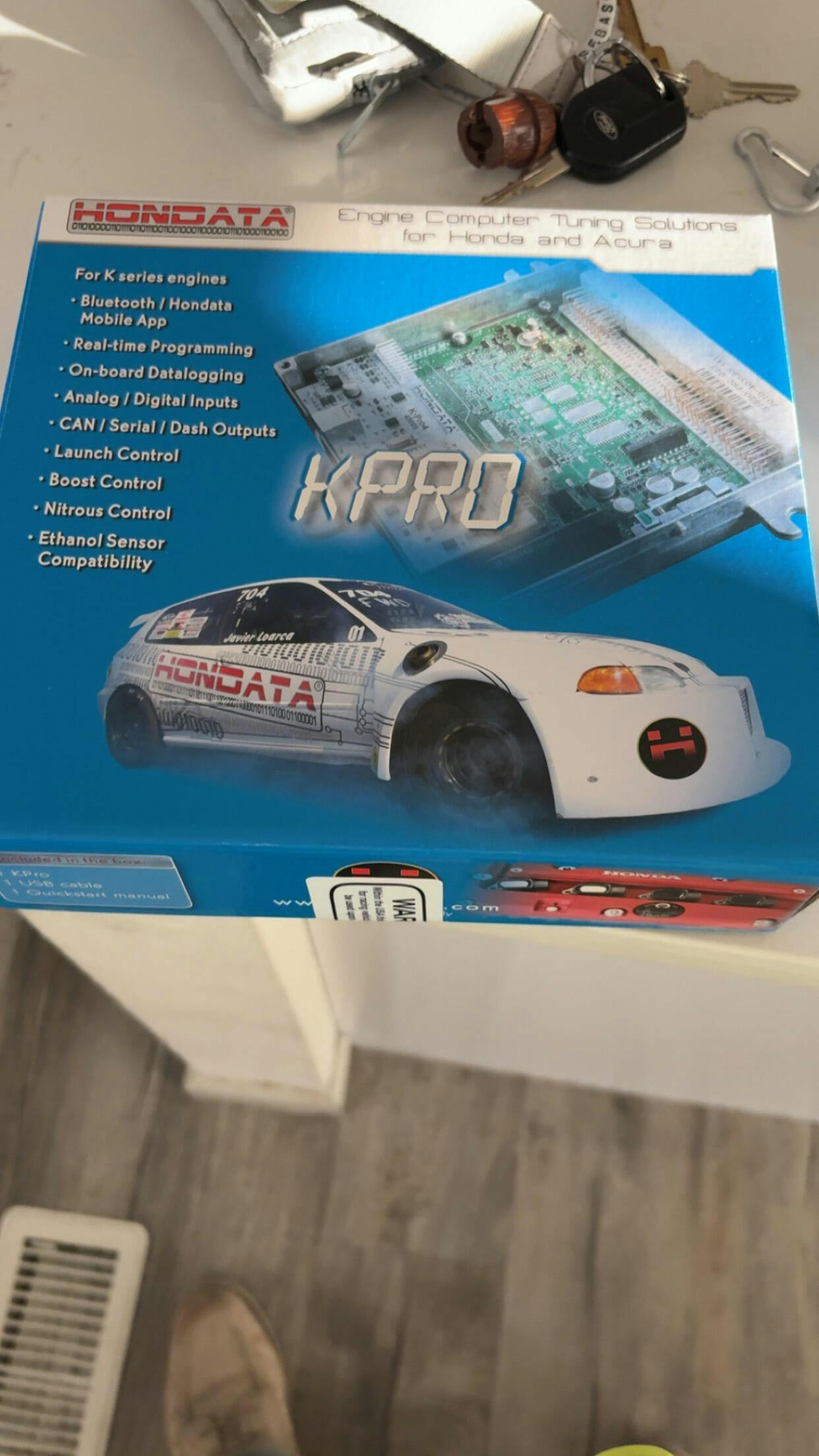

The Hondata K-Pro system consists of a circuit board (KPro) that is added to a Honda K Series ECU, plus Windows software (called Kmanager) which allows you to program the ECU as needed and datalog sensors to tune the vehicle. A compatible Honda K series ECU is required and NOT included in price. Price includes FREE installation into customer provided ECU.
For a complete K-pro equipped ECU solution, see our Kpro ECU Packages.
What ECU's can I use with the Hondata KPro?
- For 2002-2004 Acura RSX Type-S, use the PRB ECU (ECU p/n 37820-PRB-A03 through A08, PRB-305)
- For 2002-2004 Acura RSX Base model with manual transmission, use the PND ECU (ECU p/n 37820-PND-A01 through A09)
- For 2002-2005 Honda Civic Si (EP3), use the PNF ECU
The Kpro can work on other vehicles with the correct configuration. Here are additional vehicles that it can be used on:
- K20/24 engine swaps into other chassis. Must use 02-04 RSX engine harness. For 5 speed, use PND or PNF ECU. For 6 speed, use PRB ECU.
- 05-06 Acura RSX base model with manual transmission - Requires an 02-04 RSX PND or PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor. We have this available as a complete ECU package here: KPro 05-06 RSX Base ECU Package
- 05-06 Acura RSX Type-S - Requires an 02-04 RSX PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor. We have this available as a complete package here: Kpro 05-06 RSX-S ECU Package
- 01-05 Honda Civic D17A with manual transmission - Requires 02-04 K Series ECU (PRB, PND, PNF) and custom Hondata cam gear. We have this available as a complete package here: Kpro D17A ECU Package
- 00-05 Honda S2000 - Requires specially modified 02-04 RSX PRB ECU, special mounting bracket, and additional engine components to be changed. We have this available as a complete package here: Kpro S2000 ECU Package
- 03-06 Honda Element with manual transmission - Requires specially modified 02-04 RSX PND ECU and conversion harness. We have this available as a complete package here: Kpro Honda Element ECU Package
Where do I get the Kmanager software?
The Hondata Kmanager software is downloadable for free directly from Hondata's website here: http://www.hondata.com/kmanager.html
NOTE: This product is for those who already own a compatible K series ECU (listed above) and would like to have the Hondata Kpro4 installed into their own ECU. Will require shipping of your K series ECU to us, which will then be shipped to Hondata for the K Pro installation, and then finally back to you. Please allow 7-10 business days before you receive your ECU back from the upgrade.
If you do not have a compatible ECU to send in, please take a look at our complete Kpro ECU packages
Please print and complete This Form and include with your ECU when shipping to us. This form must be 100% complete and legible or Hondata may reject your ECU.
** Be sure to print a copy of your order confirmation and include in the package with your ECU (emailed to you after you submit your order). **
How does the order process work?
- Select the type of KPro you are purchasing from the drop down menu. Verify that the ECU you are sending in matches the type of Kpro you'd like to purchase.
- Proceed through the checkout process. The shipping you select and pay for at checkout is the return shipping, for shipping the completed ECU back to you once finished. Submit your order at the end of the checkout process.
- Print a copy of your order confirmation. Include this printout with your ECU when shipping to us.
- Print a copy of the Kpro order form and fill it out completely. Include this printout with your ECU when shipping to us.
- Package your ECU into any box that fits your ECU well, along with the two printouts.
- Ship to us using any shipping method you'd like. Click here for our shipping address.
- When we receive your ECU we will verify that your ECU matches the type of Kpro you are ordering, then repackage and ship your ECU along with additional documentation to Hondata. Hondata will complete your install, then ship back to you using the shipping method you selected at checkout.
- Have a question? Please don't hesitate to contact us.
