PRL 2018-2022 Honda Accord 2.0T WiFi Ethanol Content Analyzer / Flex Fuel Kit

Fits:

• 2018-2022 Honda Accord 2.0T (all variant models including 10AT, 6MT, RHD, International Models, Etc.)


The PRL Motorsports Plug ‘n Play WiFi Flex-Fuel / Ethanol Content Analyzer Kit allows you to wirelessly monitor ethanol content via any smart device or enable flex fuel via an optional 0.5-4.5V configurable output with a tuning device (ie: Hondata, KTuner). The design utilizes the factory fuel line, which makes for a clean, easy install. This kit utilizes factory plugs/outputs under the hood for power and communication to the ECU, meaning no need for additional wiring, cutting, splicing or running wires to the fuse box or through the firewall into the cabin!  The wiring harness provides the 0-5v ethanol signal to ECT2, which is easily configured for in KTuner or Hondata.  All hardware and brackets are included for quick and easy installation.  Kits can be installed and uninstalled within minutes.  Hondata and KTuner V1.2 both offer Bluetooth capabilities, while the KTuner V2 LCD screen can be used to display ethanol content if desired. All components are ethanol compliant.

Did you know that the factory fuel line assembly is actually Teflon and extremely resistant to ethanol-base fuels?  The factory fuel line is actually constructed with an EPDM (fuel and oil resistant synthetic rubber) outer hose and inner ETFE (another Teflon coating that is similar to PTFE) liner, which offers great resistance to a variety of fuels, including ethanol-based fuels. Because of this, there is no reason to "upgrade" or replace the factory fuel line assembly when used with this Ethanol Content Analyzer / Flex Fuel Kit unless kinked or damaged (please note the "Do Not Kink" Warning located on the line).

Why Run Ethanol?

Due to rising gas prices and the push for alternative fuel sources, ethanol, derived primarily from corn, has become a common, cost-effective fuel choice. Ethanol has now found its way into most modern gas stations and the community now understands its list of benefits in comparison to gasoline, such as the fact ethanol burns cleaner, cooler and is more resistant to detonation. Because of these characteristics, ethanol is a cheap alternative to expensive race fuels like race gas and/or methanol, especially with high(er) compression factory turbocharged vehicles. E85 = 85% Ethanol and 15% Gasoline whereas E30 = 30% Ethanol and 70% Gasoline and so-on.

What is Flex Fuel?

In a nutshell, “flex-fuel” allows an internal combustion engine to flexibly utilize one or more different fuels (usually gasoline blended with either ethanol or methanol fuel), and both fuels are stored in the same common fuel tank. Flex-Fuel systems utilize an ethanol content analyzer to determine the amount of ethanol in a fuel system and a converter to send this reading to the vehicle’s ECU to instantaneously adjust for varying fuel mixtures.

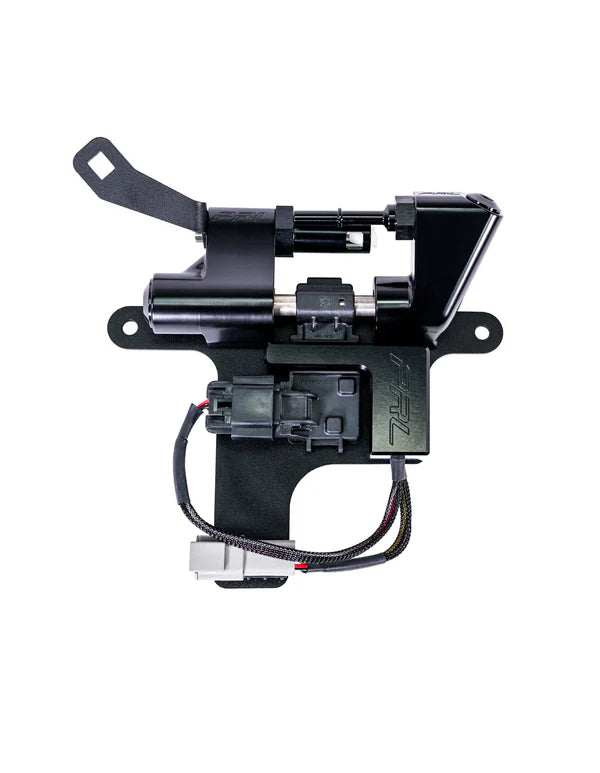

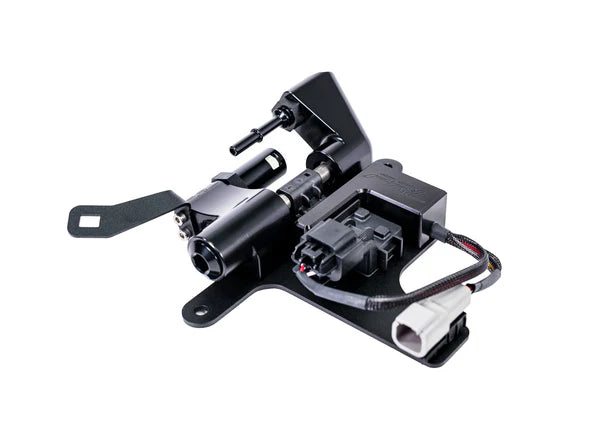

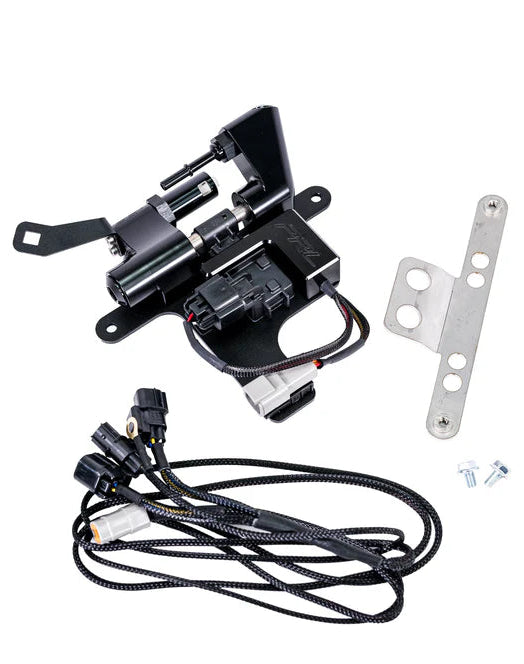

Kit Includes:

• Billet Aluminum Flex-Fuel Converter Case w/ Sealed & Potted Board (WiFi)

• Genuine GM Continental Ethanol Content Sensor

• Billet Stock Location EFI Diverter Fittings

• Plug 'N Play Braided Wiring Harness

• Stainless Mounting Bracket

• Stainless Hardware

All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

• ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
• ECU component/hardware failure due to faulty manufacturing.
• Wire harness failure due to incorrect construction.
• Product failure due to a manufacturing or assembly problem.
• Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

• ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
• Product being used in a way other than the intended use.
• Rear "warranty void if removed" sticker on ECU has been removed or altered.
• Failed, shorted, or corroded ECU board due to water damage.
• Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
• Wire harness failure due to improper use or rough handling.
• Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).

How the warranty process works:

If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
