Add B11 VSS output to KPro equipped ECU

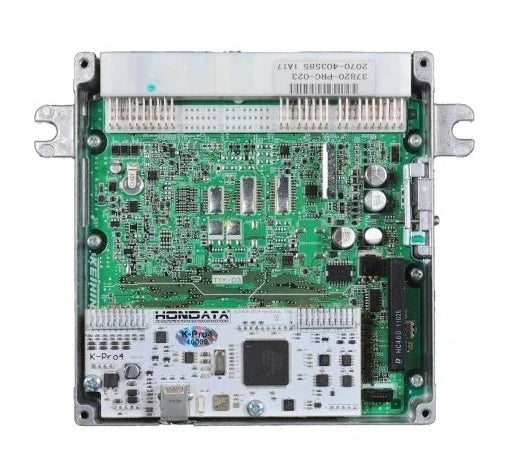

This is our service to internally modify your 02-04 K Series ECU (that is already equipped with a Hondata Kpro system) to output a VSS signal at pin B11, and includes a new pre-made wire that is needed to be added on your harness.  Price is for the service and parts needed.

From the factory, the 02-04 K series ECU does not provide a vehicle speed output to the gauge cluster as the RSX dash gets the speed signal directly from the sensor.  Whenever you install an 05+ transmission that uses a CSS (countershaft speed sensor), the cluster will no longer be able to process the speed signal.  By modifying the internal circuitry in the ECU, you can first use the ECU to process the speed signal (set calibration file to countershaft speed sensor), then have the ECU output a corrected speed signal on pin B11 to go to the speedo on the gauge cluster.  You will then run the new wire for the VSS at the C101 pin 3 to ECU pin B11 and everything will work properly!

How does the order process work?

1. Add this service to your online cart, then proceed through the checkout process.  The shipping you select and pay for at checkout is the return shipping, for shipping the completed ECU back to you once finished.  Submit your order at the end of the checkout process.
2. Package your ECU into any box that fits your ECU.  Be sure to package/pad it well to avoid damage in transit.
3. Write your order number on the outside of the box.
4. Ship to us using any shipping method you'd like.  Click here for our shipping address.
5. When we receive your ECU, we will complete the ECU modifications, then ship back to you using the shipping method you selected at checkout.
6. Have a question? Please don't hesitate to contact us.

All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

• ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
• ECU component/hardware failure due to faulty manufacturing.
• Wire harness failure due to incorrect construction.
• Product failure due to a manufacturing or assembly problem.
• Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

• ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
• Product being used in a way other than the intended use.
• Rear "warranty void if removed" sticker on ECU has been removed or altered.
• Failed, shorted, or corroded ECU board due to water damage.
• Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
• Wire harness failure due to improper use or rough handling.
• Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).

How the warranty process works:

If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
