NOTE: Our custom basemap program is a BASEMAP only. We have extensive experience developing programming for engines and our basemaps typically run very well, however, it is impossible to develop a final tuned map without having your vehicle here on a dyno for a live tuning session. Due to the large number of factors that affect ECU programming like fuel pressure changes, intake system efficiency, engine wear, engine electrical system condition, etc., we simply cannot guarantee how well your engine will run on our basemaps. This is not to be used as a final tuned program for running your custom engine setup.
Custom basemap features:
• Any D,B,F, or H series engine program
• VTEC or Non-VTEC engines
• adjust maps for boost tables
• add launch control
• program for larger injectors
• change rev limit
• change VTEC engagement
• check engine light shift light
• unlimited other adjustments available
• suited to your specific engine

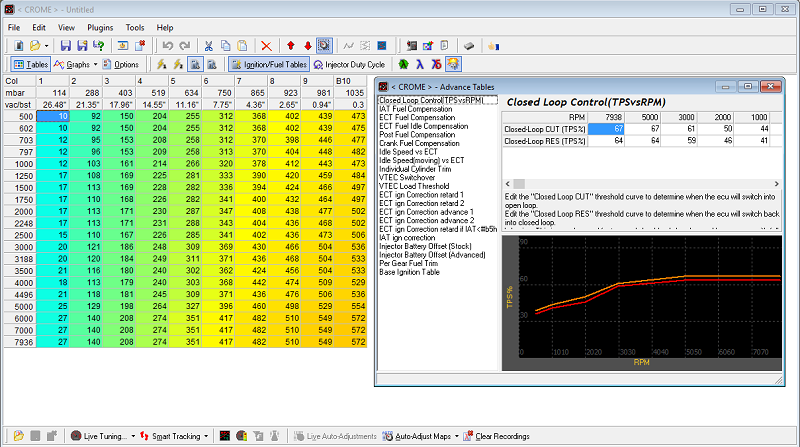

• developed using Crome Pro* dealer version
Menu Options:
Engine: Select the engine configuration that most closely matches your engine. If your engine is not listed, simply select "OTHER" and leave the information in the comments box.
Aspiration: Select if your engine is all-motor/na , turbocharged, or supercharged.
Map Sensor: Select the MAP sensor that you are using. This MUST match the map sensor that is on your engine or your car will not run. If your map sensor is not listed, simply select "OTHER" and provide your map sensor information in the comments box.
Fuel Injectors: Select the fuel injectors that you are using. This MUST match the injectors that are installed on your engine or it will run very poorly if it even runs at all. If your injectors are not listed, simply select "OTHER" and provide your fuel injector information in the comments box.
REV Limit This should be set to a safe RPM for your engine. A higher REV limit does not necessarily mean more power. Choose a limit that is safe for your engine.
Shift Light: The shift light option will illuminate your check engine light on your dash to serve as an indicator that you are approaching the REV limit. This simply provides an easy way to know when you need to shift to the next higher gear. We recommend setting this 200-400 rpm before the rev limit -or- whatever RPM you'd like to be notified to shift.
Launch Control RPM: Launch control will set a lower rev limit while the vehicle is not moving to work as a launching RPM. When stopped, you will be able to hold the gas pedal to the floor and only rev to the Launch Control RPM until you let the clutch out and begin moving. Once your car begins moving, the regular rev limit will resume. Your speed sensor MUST be working properly for this to work. If your speed sensor is not functioning, the launch control will be stuck engaged even while moving. We recommend to set the launch control RPM to an RPM that allows your tires to very lightly spin when the clutch pedal is released. If you do not wish to have this feature on your basemap, please select "NO LAUNCH CONTROL" and we will not add this to your program.
VTEC Engagement RPM: This is the RPM at which your VTEC will engage. This should be at an RPM that allows the smoothest transition. If you are unsure about what RPM to use, please select "NOT SURE" and we will set this at the best RPM for you. If you are ordering a basemap for a non-vtec engine, please select "NO VTEC".
Knock Sensor: If your engine has a knock sensor installed AND your ECU has knock sensor circuitry then this can be left enabled. This will simply allow the ECU to retard ignition timing if engine knock/detonation is detected. If you are using an ECU that does not have knock sensor circuitry (ie: P28) then this should be set to "DISABLED".
ELD: This is the Electronic Load Detector. This allows the ECU to detect when an electrical load is placed on the engine (ie: head lights turned on) and raise the idle speed. If you are working on an OBD0 platform (90-91 integra, 88-91 civic/crx) then this should be disabled. Most other platforms can leave this enabled, but will not cause any major problem if left disabled.
Oxygen Sensor: If you have a functioning oxygen sensor installed and would like the ECU to use O2 sensor feedback for emissions, etc. then this can be set to "ENABLED". If you do not want the ECU to use O2 feedback, or you do not have a functioning O2 sensor installed, select "DISABLED". This can typically be left as "DISABLED" on any setup without any problems.
Oxygen Sensor Heater Circuit: The O2 sensor heater circuit allows faster response from the O2 sensor to begin using O2 feedback. If you are using a one wire O2 sensor, leave this as "DISABLED". If you are using a 4 wire O2 sensor and would like this on for emissions purposes, then select "ENABLED".
QUESTIONS & ANSWERS
Ask a Question-
Hi, So I have b18c2 (c1) block, but it has a jdm type r head - will be in a civic eg. it has, skunk manifold and a 70mm skunk throttle body, headers. what box do i choose, bcause there is no option for it.
Select "other" for the engine, then write your engine setup info in the comments box at checkout. Thanks,
-
I'm trying to get my chipped p28 ecu running on my car. I'm using chrome and moates ostrich. I need a base map file to load up in chrome just to get going. It's all stock so far. Almost ready for boost. Just need a stock basemap for a d16y8. Id like to have the o2 sensors disabled so my check engine light goes off. Speed governor remover. Like to have 2 step and rev limiter but know nothing about what to set at. It's all stock the olny thing that's been done is exhaust manifold and exhaust. Would you be able to hook me up with something I can load in chrome.
Yes, we can program and provide this basemap for you. Just write this info in the comments box at checkout, and for options that you are unsure of, just write in that you'd like us to select for you. You can always change any of these settings yourself later using the Crome software.
