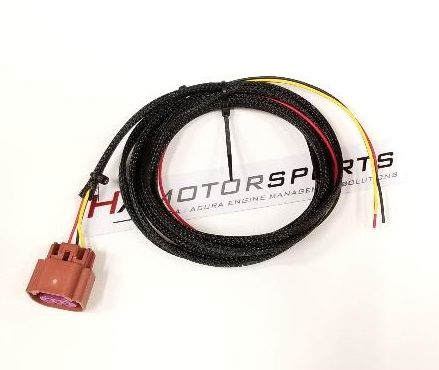

HA Motorsports custom assembled plug-n-play wire harness for use with the HA Motorsports E85 ethanol content sensor. This harness has brand new connectors and 6 feet of wire for easy connection to your Kpro4 analog input connector. The harness features color-coded automotive TXL wire that exceeds OEM specifications and is resistant to moisture, grease, oil, gasoline, and most acids and solvents making it very durable for engine compartments.
- Connect 'VCC' (yellow wire) to switched +12volts
- Connect 'Gnd' (black wire) to Analog input harness ground (black wire on Analog connector)
- Connect 'Out' (red wire) to Analog input harness AN0 (red wire on Analog connector) For more information on the Analog input connectors on the Kpro, see the Kpro help guide here: http://www.hondata.com/help/kmanager/analog_wiring.htm
