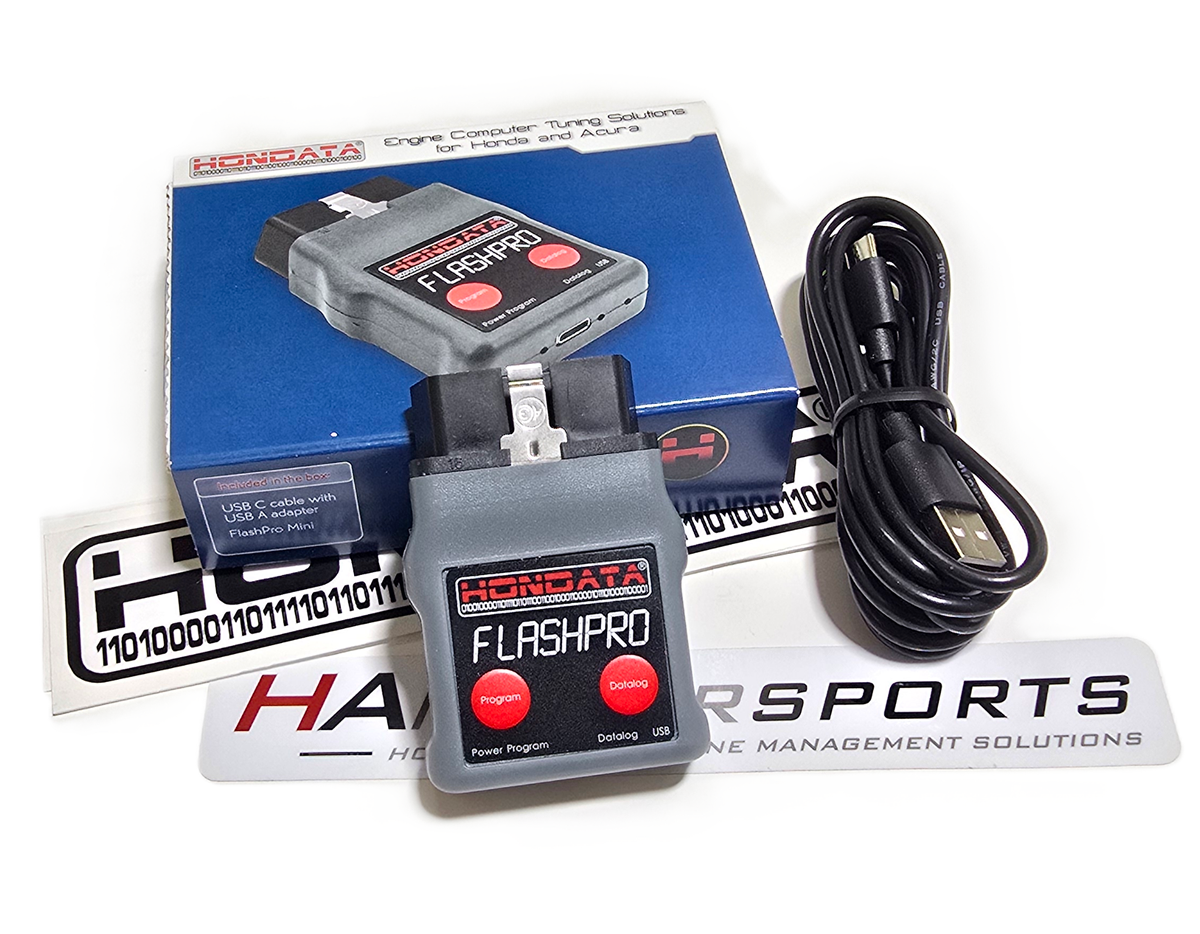

Hondata FlashPro 2006-2011 Civic Si - RACE

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE.

The Hondata FlashPro allows full tuning of the US model 2006-2011 Civic Si directly through the diagnostic port. No physical modification to your Honda ECU is required! The Hondata FlashPro is a hardware and software combination that connects from your laptop's USB port to your 2006 up Civic Si's diagnostic port. It enables you to tune your engine computer for engine upgrades like; intake, exhaust, header, cams, nitrous, turbochargers, and so much more! (Click here to view the installation / operation manual) FlashPro Manager software's advanced datalogging and live tuning capabilities combined with thoroughly tested base maps (56 included with software) allow your car to be tuned faster and more accurately than any other solution on the market. You will love the way your engine's response is improved.

FlashPro features:

Programmable ECU interface.
Connects via OBDII diagnostic port.
USB 2.0 connection
Works with Laptop or Desktop
No ECU modification necessary.
Live Tuning
20 hours on board datalogging memory.
Security Password.
FlashProManager Windows software.
Check and clear diagnostic codes.
Custom laptop gauges.
Dual calibration storage - upload from one of two calibrations stored in the FlashPro

2006+ Civic Si AFM/MAF based calibrations:

Ignition, fuel, cam angle, idle speed table editing.
VTEC window.
Rev and launch limiters.
AFM calibration table.
Wideband input.
Speedometer adjustment.
Corrected Air Fuel Ratio
Readiness and Diagnostic trouble codes.
Idle Speed adjustment
Map tracing & lambda overlay.
Advanced Graphing.
20 starting calibrations for common intakes and race header combinations.

2006+ Civic Si MAP based calibrations:

* Above features plus:
Rev hang eliminated
Expanded fuel, ignition & cam angle tables for forced induction.
4 bar MAP sensor support (40 psi).
50 degree cam angle movement for more midrange torque (up from 45 degrees maximum)
Boost control by RPM and gear
Boost cut
Support for larger injectors.
Injector latency / dead time.
Individual cylinder fuel & ignition trim.
Disable Primary and Secondary oxygen sensors.
Race vehicle sensor disabling.
Radiator Fan control.
Target Throttle table.
Ignition and Fuel temperature compensation tables.
Speed limiter removed.
35 starting calibrations for intake, headers, forced induction & injector combinations.

All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

• ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
• ECU component/hardware failure due to faulty manufacturing.
• Wire harness failure due to incorrect construction.
• Product failure due to a manufacturing or assembly problem.
• Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

• ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
• Product being used in a way other than the intended use.
• Rear "warranty void if removed" sticker on ECU has been removed or altered.
• Failed, shorted, or corroded ECU board due to water damage.
• Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
• Wire harness failure due to improper use or rough handling.
• Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).

How the warranty process works:

If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
