WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. TO PURCHASE, YOU MUST SET UP AN ACCOUNT ON OUR ONLINE STORE AND COMPLETE THE RACE-USE FORM:
SET UP AN ACCOUNT: set up online store account
RACE-USE FORM racing-use form

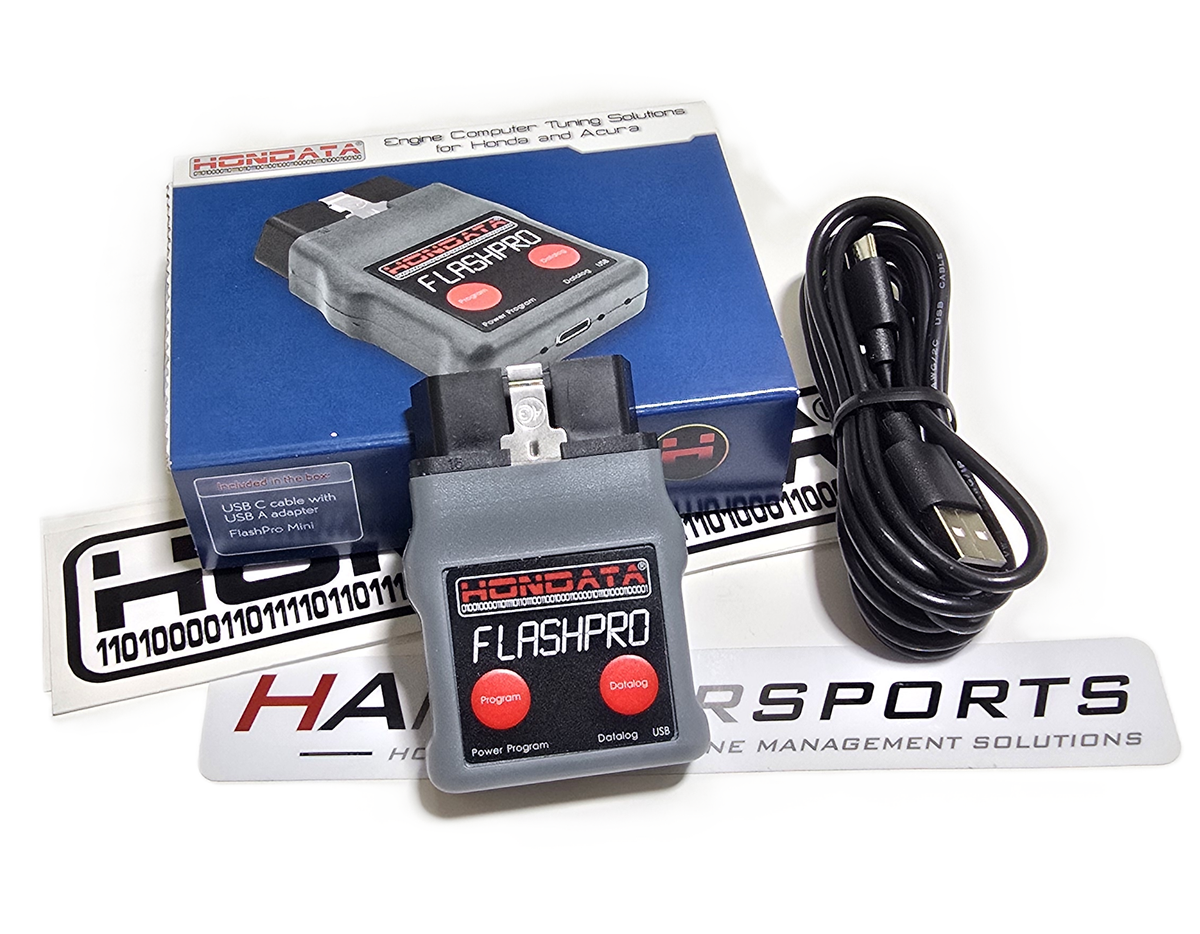

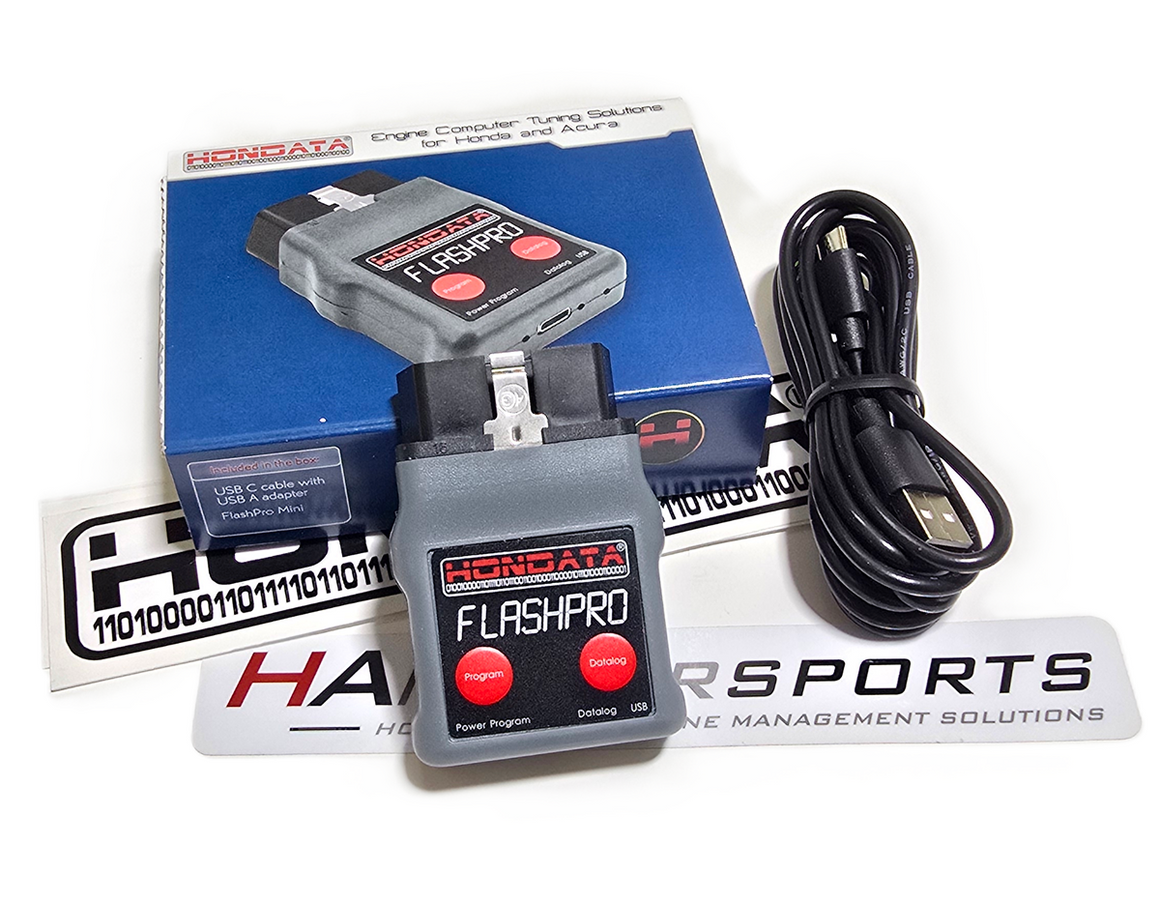

Looking for the perfect tuning solution for your 2004-2014 Acura TSX? The Hondata FlashPro for TSX is the answer with its advanced tuning capabilities and easy setup. The Hondata FlashPro allows easy ECU/PCM programming changes/reflashes by plugging one end into the OBD2 diagnostic port and the other end into your laptop. The Hondata Flashpro Manager software allows full real-time tuning and datalogging capabilities of the TSX engine via the FlashPro system.
- 2007-2014 Acura TSX require absolutely zero modifications to the ECU/PCM. The ECU/PCM never even needs to be removed or touched. All changes are done easily by plugging into the factory OBD2 diagnostic port.
- 2004-2006 Acura TSX applications will require the factory 04-06 ECU to be replaced with an 07-08 TSX ECU. This is due to the 04-06 ECU not being able to be programmed through the diagnostic port. You will also need to install the CAN adapter kit to extend the factory wiring to reach the OBD2 diagnostic port.
- Programmable ECU interface.
- Connects via OBDII diagnostic port.
- USB 2.0 connection
- Works with Laptop or Desktop
- No ECU modification necessary.
- Live tuning
- 20 hours on board datalogging memory.
- FlashPro Manager Windows software.
- Check and clear diagnostic codes.
- Customizable laptop gauges.
- Readiness codes and smog check status.
- Dual calibration storage - upload from one of two calibrations stored in the FlashPro.
- Ignition, fuel, idle speed, table editing.
- VTEC window.
- Rev and launch limiters.
- Map tracing & lambda overlay.
- Expanded fuel, ignition & cam angle tables for forced induction.
- 4 bar MAP sensor support (43 psi).
- Support for larger injectors.
- Injector latency / dead time.
- Individual cylinder fuel & ignition trim.
- Individual cylinder knock datalogging
- Starting calibrations for intake, headers & larger injectors.
- Boost control by RPM and gear (07-08 TSX only)
- For a more detailed feature lists see the FlashPro help file.
