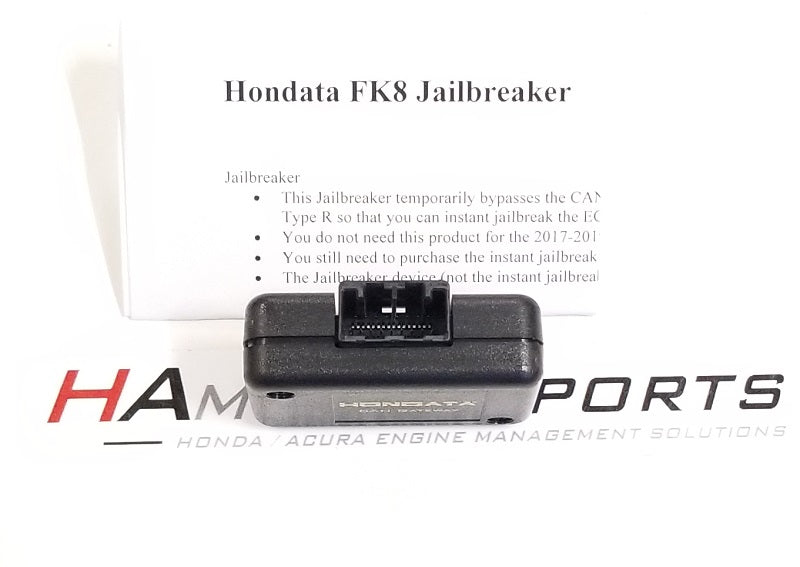

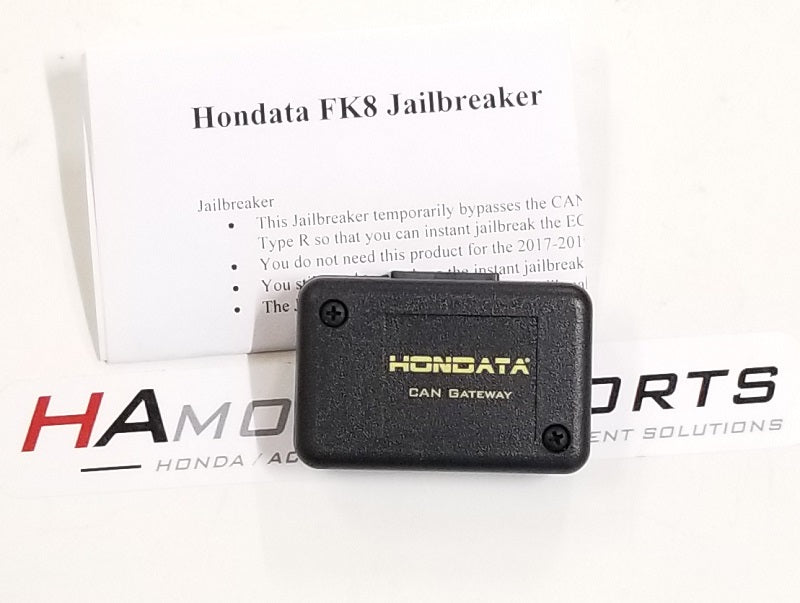

This Jailbreaker temporarily bypasses the CAN gateway on the 2020-2021 US market Honda Civic Type R so that you can instant jailbreak the ECU.
You do not need this product for the 2017-2019 US Honda Civic Type R or any other vehicle.
You still need to purchase the instant jailbreak.
The Jailbreaker device (not the instant jailbreak) can be used on as many vehicles are you like.
- Update FlashProManager to the latest beta version.
- Do not attempt to jailbreak the ECU if the ECU is in recovery mode. In this case return the ECU to stock and verify it is working.
- Pull the left side of the lower dash free. It is held in with spring clips and will come away without much force.

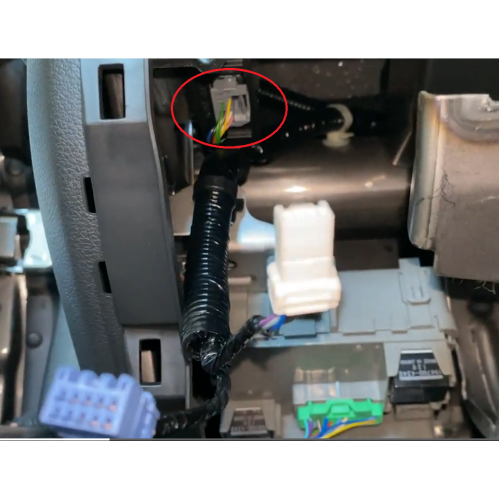

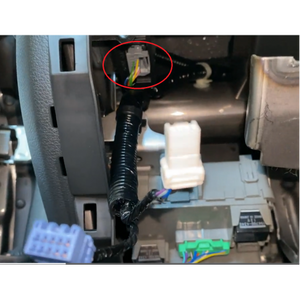

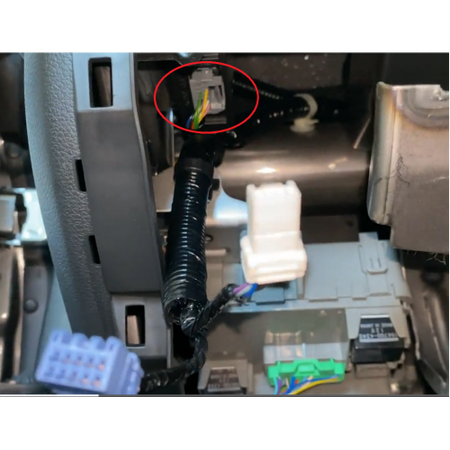

- Locate the stock CAN gateway. It is on the same wiring as the white and the blue connectors which plug into the lower dash.
- Unplug the stock CAN gateway and plug in the Jailbreaker.
- Using your FlashPro perform an instant jailbreak as described here.
- Unplug the Jailbreaker and plug back in the stock CAN gateway.
- Push the lower dash back into place.
- Drive the vehicle a short distance to clear any problem codes.
