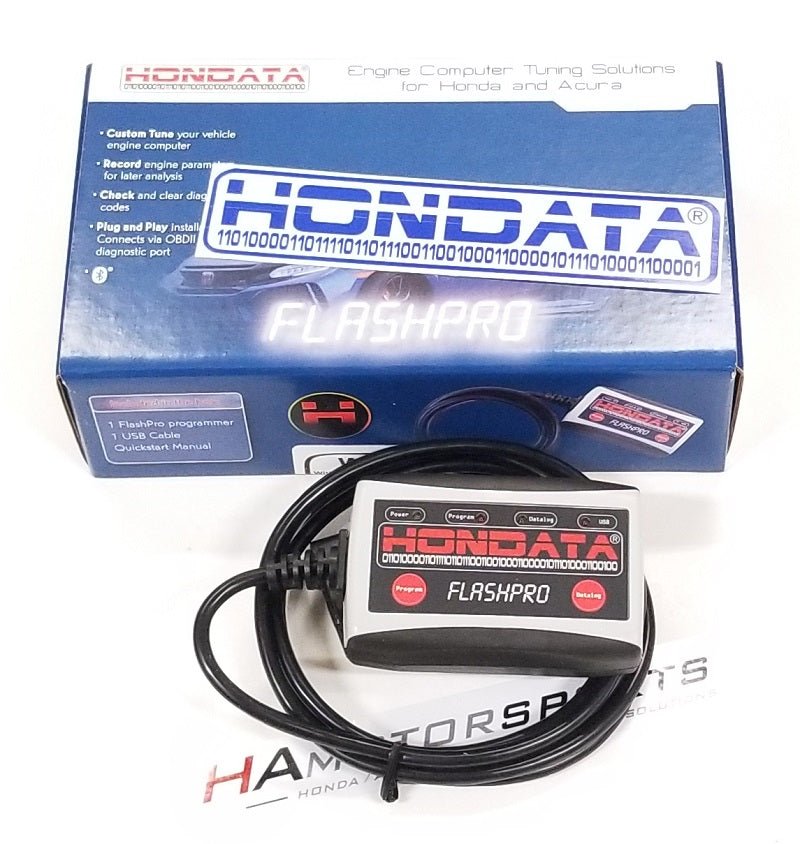

Hondata FlashPro 2017+ Honda CRV Turbo 1.5 - RACE
The Hondata FlashPro for 2017+ Honda CRV 1.5 Turbo allows full user tuning and datalogging of the CRV engine using the Hondata FlashPro Manager software. The Hondata FlashPro unit connects to the OBD2 diagnostic port on your CRV, then to your laptop via USB cable. This allows the system to provide real-time programming of your ECU and datalogging of engine operation and engine sensors.
Fitment:
- 2017 Honda CRV with 1.5 Turbo engine and CVT transmission
FlashPro features:
- Hondata Mobile connectivity
- Programmable ECU interface.
- Connects via OBDII diagnostic port.
- USB 2.0 connection
- Works with Laptop or Desktop
- No ECU modification necessary.
- Live tuning
- 20 hours on board datalogging memory.
- FlashProManager Windows software.
- Check and clear diagnostic codes.
- Customizable laptop gauges.
- Dual calibration storage - upload from one of two calibrations stored in the FlashPro.
2017+ CRV Features
- Speed limiter removed
- Ignition, fuel, idle speed, table editing.
- Ignition and fuel temperature compensation tables.
- Rev and launch limiters.
- AFM calibration table.
- Idle speed adjustment.
- Individual cylinder fuel and ignition trim
- Map tracing and lambda overlay
- Advanced graphing
- Starting calibrations included. For a more detailed feature lists see the FlashPro help file.
What else do I need to use this system?
- Laptop or Desktop computer running Windows. (32 or 64 bit Windows XP, Vista, Windows 7, or Windows 8)
- Internet access for first time use to register the system * The software will also work on Intel based Macs running Bootcamp with the above specifications. Has been extensively tested and works well. Parallels and VMWare virtualization software has been tested with no problems found to date.
How will the FlashPro perform on a stock CRV 1.5 Turbo?
With a 100% stock 1.5 CRV Turbo you will benefit from:
- Effortless overtaking
- More torque for hauling heavier loads
- Lowered 0-60 (about 1 second improvement)
- Improved turbo spool
- Raised boost limits
- Better throttle response
- Better mid range power and torque
- Removed speed limit
- No change in part throttle fuel economy
- World Class Datalogging - which will teach you a lot about your engine.
Base maps:
This is an example of the base map provided with the FlashPro. The lower curve was is from a stock CRV on CA 91 octane. The higher power curve is the Hondata base map on CA 91 octane. The CRV will run on either 87 octane or higher. Higher octane makes more power everywhere.
CRV plus 6 psi more boost.
+25 HP and 25 lb-ft torque
Hondata measured the stock CRV boost at around 14 psi. The reflash adds around 6 psi of boost and 13% torque and power increase virtually everywhere.
