Hondata Mail-Order Reflash 02-05 Honda Civic Si (EP3)

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE.

This is our mail-order Hondata reflash service for 2002-2005 Honda Civic Si.  Ship your ECU from your EP3 Civic to Hondata to get the Hondata reflash completed.  Once the reflash is done it will ship directly back to you.

Hondata Reflash for 2002-2005 "PNF" engine computer.

• Fuel, ignition timing and cam timing optimized.
• Rev limiter raised to 7700rpm.
• 10-12 peak hp gain depending on the dyno and modifications
• 4-9ft lb torque across the rev range
• Power peak raised 400 rpm from 6300 rpm to 6700 rpm (higher with headers)
• 0-60 mph times improved by 1 second.
• Fully dealer compatible -works with all Honda scan tools and equipment

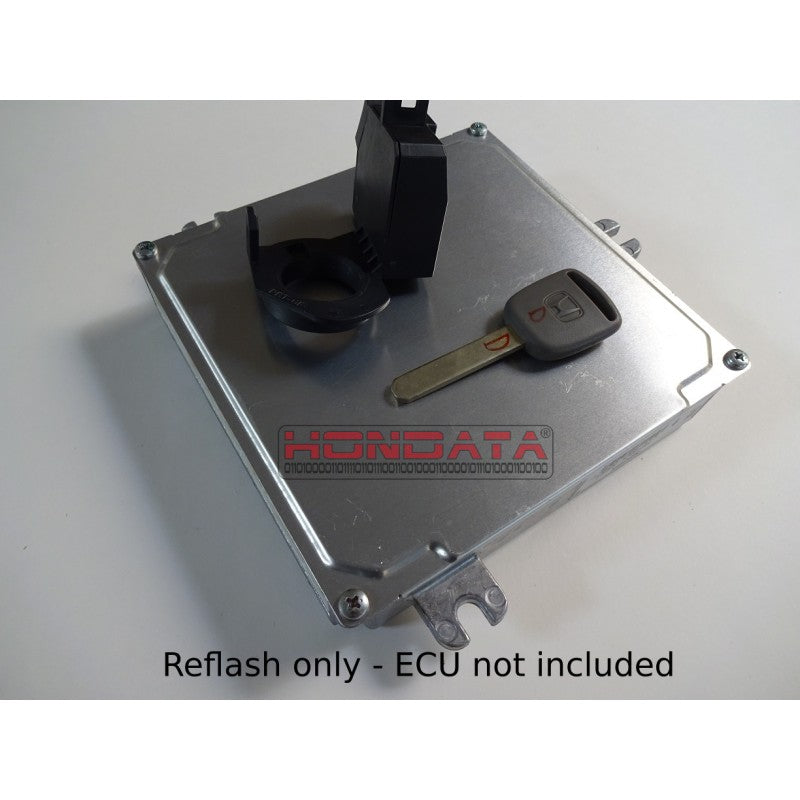

This is for an ECU reflash - the ECU is not included.  The ECU reflash form must be sent with your ECU when you ship it to us.

What do I need to ship to have this done?

Five items must be sent to Hondata:  the ECU, the ignition key, the immobilizer, the filled out reflash form, and a print out of our dealer purchase order.

What ECU's can be used?

37820-PNF-A01 to 37820-PNF-A12

We recommend that 91 octane fuel be used with this reflash.

How do I remove my immobilizer?

Under the steering column remove the three philips screws holding on the bottom plastic cover.

Depress the bottom cover along its top edge where it meets the top cover to separate the plastic clips. Rotating the steering wheel 45 degrees can help.

Lower the steering column and remove the bottom plastic cover from over the height adjustment lever.

Unclip the green immobilizer connector and unscrew the securing two philips screws.

How do I remove my ECU?

The Civic Si's ECU is located in the passenger's footwell behind the glove compartment.

Unclip the lower plastic panel:

Unplug the three ECU connectors.

Remove the lower two 10 mm bolts.

Open the glove compartment and push out from behind the two bump stops. The glove compartment will drop after this is done.

Undo the last 10 mm bolt and slide the ECU down.

After you submit your order for the reflash service we will email a copy of our dealer purchase order.  Ship your ECU, immobilizer, ignition key, the completed reflash form, and print out of our dealer purchase order all to Hondata:

Hondata ECU Reflash Order
2840 Columbia Street
Torrance, CA 90503
USA

All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

• ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
• ECU component/hardware failure due to faulty manufacturing.
• Wire harness failure due to incorrect construction.
• Product failure due to a manufacturing or assembly problem.
• Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

• ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
• Product being used in a way other than the intended use.
• Rear "warranty void if removed" sticker on ECU has been removed or altered.
• Failed, shorted, or corroded ECU board due to water damage.
• Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
• Wire harness failure due to improper use or rough handling.
• Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).
