Neptune RTP Custom Programmed Basemap File

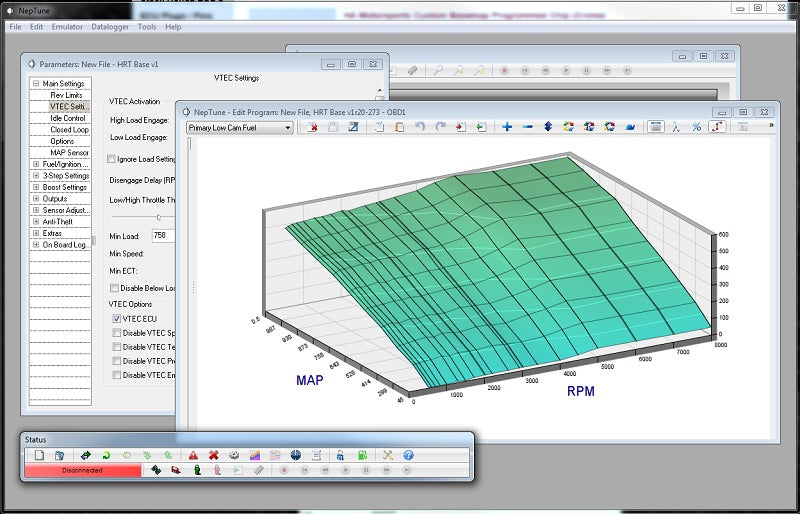

HA Motorsports custom basemap file for use with Neptune RTP. The Neptune basemap file will be EMAILED to you within 1 business day. You will NOT receive a tangible copy of the file. The basemap file will be sent to you as an attachment in an email. You will need to download the file and save to your laptop. Then open the Neptune RTP software, click File, Open, then select the basemap from where you saved it on your computer. After opening the file, plug your USB cable into your ECU, turn your ignition on ( do not start engine ), then upload the file to your ECU. Turn your ignition back off, then go ahead and start your vehicle. NOTE: For use with Neptune RTP / Demon systems ONLY. Will not work with other tuning software, and can NOT be programmed onto a chip as the Neptune software no longer works on chips (must be used with a licensed Moates Demon). Our custom basemap program is a BASEMAP only. We have extensive experience developing programming for engines and our basemaps typically run very well, however, it is impossible to develop a final tuned map without having your vehicle here on a dyno for a live tuning session. Due to the large number of factors that affect ECU programming like fuel pressure changes, intake system efficiency, engine wear, engine electrical system condition, etc., we simply cannot guarantee how well your engine will run on our basemaps. This is not to be used as a final tuned program for running your custom engine setup.
Menu Options:
Engine: Select the engine configuration that most closely matches your engine. If your engine is not listed, simply select "OTHER" and leave the information in the comments box.
Aspiration: Select if your engine is all-motor/na , turbocharged, or supercharged.
Map Sensor: Select the MAP sensor that you are using. This MUST match the map sensor that is on your engine or your car will not run. If your map sensor is not listed, simply select "OTHER" and provide your map sensor information in the comments box.
Fuel Injectors: Select the fuel injectors that you are using. This MUST match the injectors that are installed on your engine or it will run very poorly if it even runs at all. If your injectors are not listed, simply select "OTHER" and provide your fuel injector information in the comments box.
Launch Control RPM: Launch control will set a lower rev limit while the vehicle is not moving to work as a launching RPM. When stopped, you will be able to hold the gas pedal to the floor and only rev to the Launch Control RPM until you let the clutch out and begin moving. Once your car begins moving, the regular rev limit will resume. Your speed sensor MUST be working properly for this to work. If your speed sensor is not functioning, the launch control will be stuck engaged even while moving. We recommend to set the launch control RPM to an RPM that allows your tires to very lightly spin when the clutch pedal is released. If you do not wish to have this feature on your basemap, please select "NO LAUNCH CONTROL" and we will not add this to your program.
VTEC Engagement RPM: This is the RPM at which your VTEC will engage. This should be at an RPM that allows the smoothest transition. If you are unsure about what RPM to use, please select "NOT SURE" and we will set this at the best RPM for you. If you are ordering a basemap for a non-vtec engine, please select "NO VTEC".
REV Limit This should be set to a safe RPM for your engine. A higher REV limit does not necessarily mean more power. Choose a limit that is safe for your engine.
Shift Light: The shift light option will illuminate your check engine light on your dash to serve as an indicator that you are approaching the REV limit. This simply provides an easy way to know when you need to shift to the next higher gear. We recommend setting this 200-400 rpm before the rev limit -or- whatever RPM you'd like to be notified to shift.
Knock Sensor: If your engine has a knock sensor installed AND your ECU has knock sensor circuitry then this can be left enabled. This will simply allow the ECU to retard ignition timing if engine knock/detonation is detected. If you are using an ECU that does not have knock sensor circuitry (ie: P28) then this should be set to "DISABLED".
ELD: This is the Electronic Load Detector. This allows the ECU to detect when an electrical load is placed on the engine (ie: head lights turned on) and raise the idle speed. If you are working on an OBD0 platform (90-91 integra, 88-91 civic/crx) then this should be disabled. Most other platforms can leave this enabled, but will not cause any major problem if left disabled.
Oxygen Sensor: If you have a functioning oxygen sensor installed and would like the ECU to use O2 sensor feedback for emissions, etc. then this can be set to "ENABLED". If you do not want the ECU to use O2 feedback, or you do not have a functioning O2 sensor installed, select "DISABLED". This can typically be left as "DISABLED" on any setup without any problems.
Oxygen Sensor Heater Circuit: The O2 sensor heater circuit allows faster response from the O2 sensor to begin using O2 feedback. If you are using a one wire O2 sensor, leave this as "DISABLED". If you are using a 4 wire O2 sensor and would like this on for emissions purposes, the select "ENABLED".
All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.
What is covered under warranty:
- ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
- ECU component/hardware failure due to faulty manufacturing.
- Wire harness failure due to incorrect construction.
- Product failure due to a manufacturing or assembly problem.
- Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.
What is NOT covered under warranty:
- ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
- Product being used in a way other than the intended use.
- Rear "warranty void if removed" sticker on ECU has been removed or altered.
- Failed, shorted, or corroded ECU board due to water damage.
- Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
- Wire harness failure due to improper use or rough handling.
- Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).
How the warranty process works:
If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
