Rywire K Series Budget Tucked Engine Harness K2 (Front VSS)

- 2 In Stock
$725.00 USD

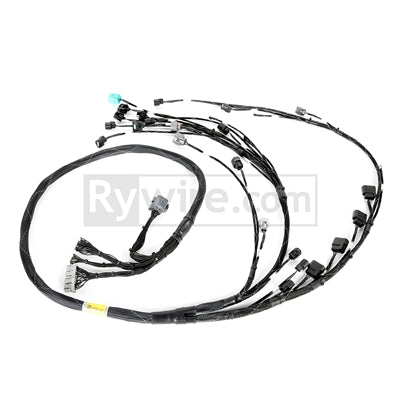

Rywire K series 'tucked' style K series engine harness.  This is the version 2 of Rywire's K series harness, which is made for a more universal fitment and wire harness routing style.  It can be routed like the OEM RSX harness or more to the right side of the firewall if desired.  This harness is designed like the 2002-2004 RSX K20 engine harness, but has the VSS sensor connector near the front towards the vehicle's headlights.  The pinout at the ECU and C101 connector are 02-04 RSX pinouts, and recommended to be used with a K series ECU with Hondata Kpro installed.

The Budget K-series Version 2 (K2) wire-tuck engine harness is nearly identical to its K2 Mil-spec counterpart with the primary differences being the type of wire used, the single black wire color and expandable loom used. All connectors and materials are new. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a white identification label for easy installation. All heavy interference circuits are protected and grounded with proper wire covering. Our engine harnesses are 100% quality tested pin to pin and resistance checked to ensure no voltage fluctuations.  This harness follows an OEM style configuration meaning that you'll still need a interior computer plug adapter for your chassis - see our K Series Chassis adapters to complete your install.

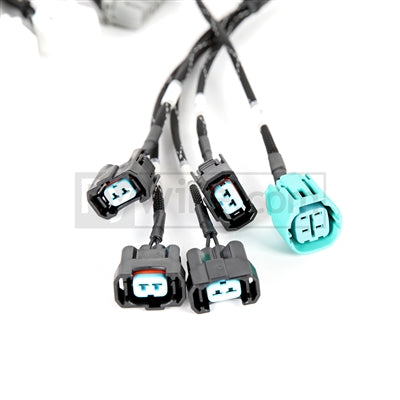

Harness Connectors:

  • VTEC solenoid
  • VTC
  • Oil pressure sending unit
  • Crank Sensor (CKP)(02-04 K20 style)
  • Coils 1-4
  • Cam (CPS) Exhaust Side
  • Top Dead Center sensor (TDC) Intake Side
  • Engine Coolant Temp (ECT) (02-04 K20 style)
  • Knock Sensor (KS)(02-04 K20 style)
  • Intake Air Temperature (IAT)
  • Alternator (02-04 K20 style)
  • Manifold Air Pressure (MAP)
  • Throttle Position Sensor (TPS)
  • Idle control motor
  • Electronic speed sensor (VSS)
  • Injectors 1-4
  • h20 sending unit (for gauge cluster)
  • Reverse Lights
  • Reverse Lockout solenoid
  • Starter signal

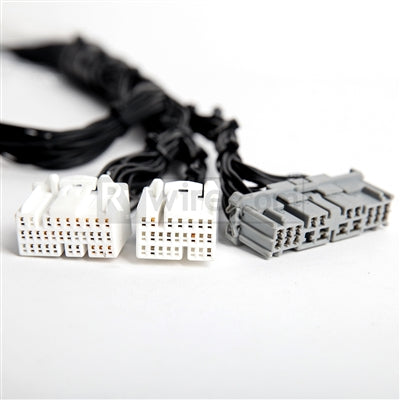

  • Computer plugs A and B
  • Power distribution cap
  • Ground
  • 2 extra wires for add-ons if needed (ie: boost control, etc.)



All products sold by HA Motorsports include a no hassle 1 year VIP warranty against ANY manufacturing defects. We are proud to honor this warranty as we feel 100% confident in our products to perform flawlessly as intended and your complete satisfaction. Upon the occasion that a product of ours fails at any time within 1 year of purchase due to any manufacturing defects, your product will need to be returned to us for inspection to determine the cause of the failure and inspection for repair or replacement. Your 100% satisfaction is our goal and if you are not completely happy we'd like every chance to make it right.

What is covered under warranty:

  • ECU board failure due to faulty ECU components (ie: injector driver fails, CPU processor fails, specific ECU circuit does not operate as intended, poor soldering, etc.)
  • ECU component/hardware failure due to faulty manufacturing.
  • Wire harness failure due to incorrect construction.
  • Product failure due to a manufacturing or assembly problem.
  • Outside company products. We will handle the hassle of shipping your product back to the manufacturer for warranty processing. Let us replace your product for you and we will deal with the warranty process with the manufacturer later.

What is NOT covered under warranty:

  • ECU failure due to improper vehicle wiring (ie: ECU component fries due to sensors being connected incorrectly, low resistance fuel injectors being used without a resistor box, ROM chip being installed backwards by user, customer attempts to modify ECU in ANY way other than intended, etc.)
  • Product being used in a way other than the intended use.
  • Rear "warranty void if removed" sticker on ECU has been removed or altered.
  • Failed, shorted, or corroded ECU board due to water damage.
  • Any and all outside labor charges associated with removing and replacing product or diagnosing product failure.
  • Wire harness failure due to improper use or rough handling.
  • Cosmetic variances from manufacturing (ie: ECU lid has variation in powder coat texture or color within acceptable limits, wire harness color variations within acceptable limits).

How the warranty process works:

If you've determined that a product has failed due to a manufacturing defect, please contact us via email at sales@hamotorsports.com to review the symptoms you are experiencing to allow us to assist you with troubleshooting before shipping your product back to us for warranty. Many times, we can help you with the problem and determine what is being done incorrectly or how to configure the product properly to restore correct operation. If after we discuss the issues you are experiencing we determine that your product may need warranty replacement or inspection we will instruct you how to return it to us. Please note that we test EVERY ECU, EVERY ECU package, and wire harness components on our state-of-the-art testing equipment for complete proper operation before packaging and shipping to customers. PLEASE verify ALL wiring, installation, software settings, etc. are correct BEFORE contacting us for warranty repair/replacement.
