HA Motorsports Ethanol Sensor Plug-n-Play Harness for Hondata S300

11 In Stock
$39.00 USD

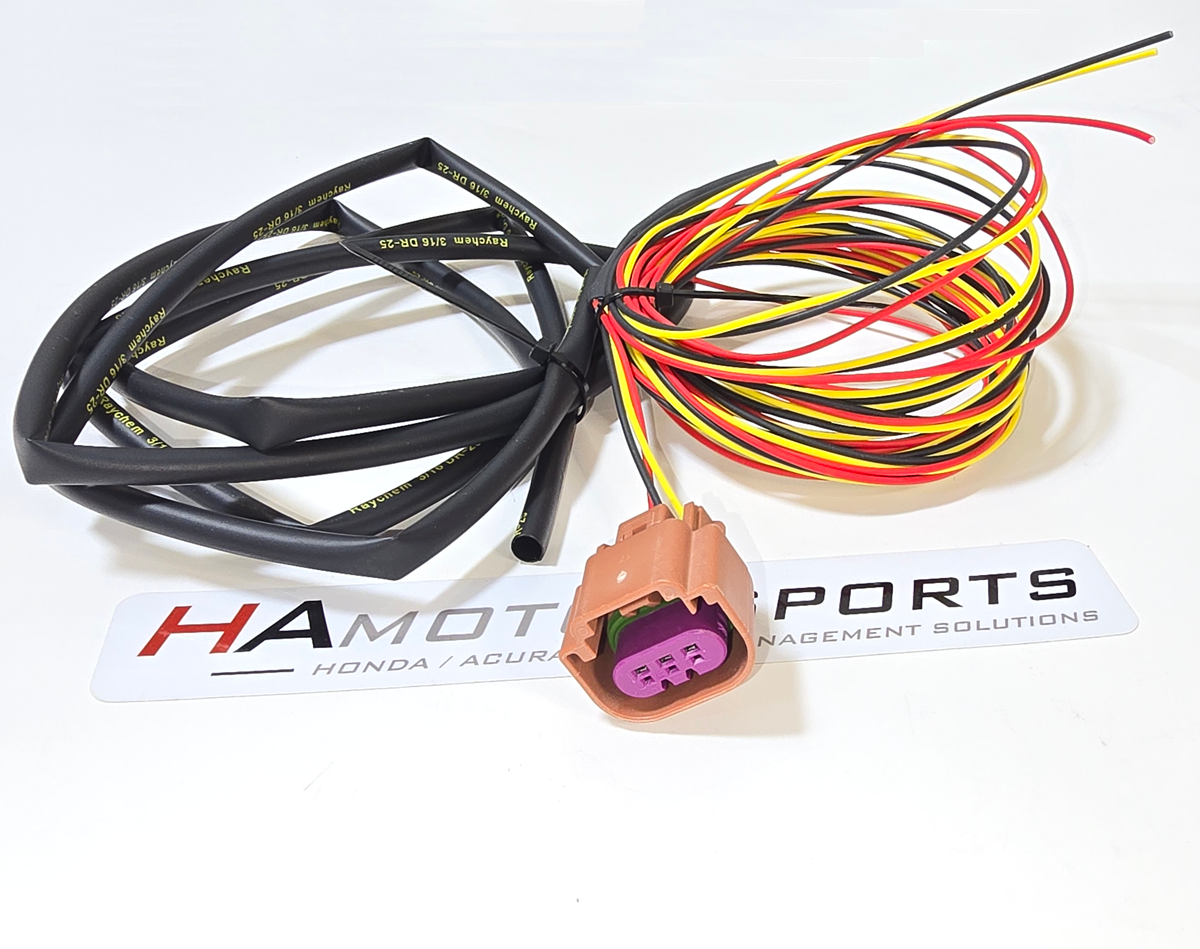

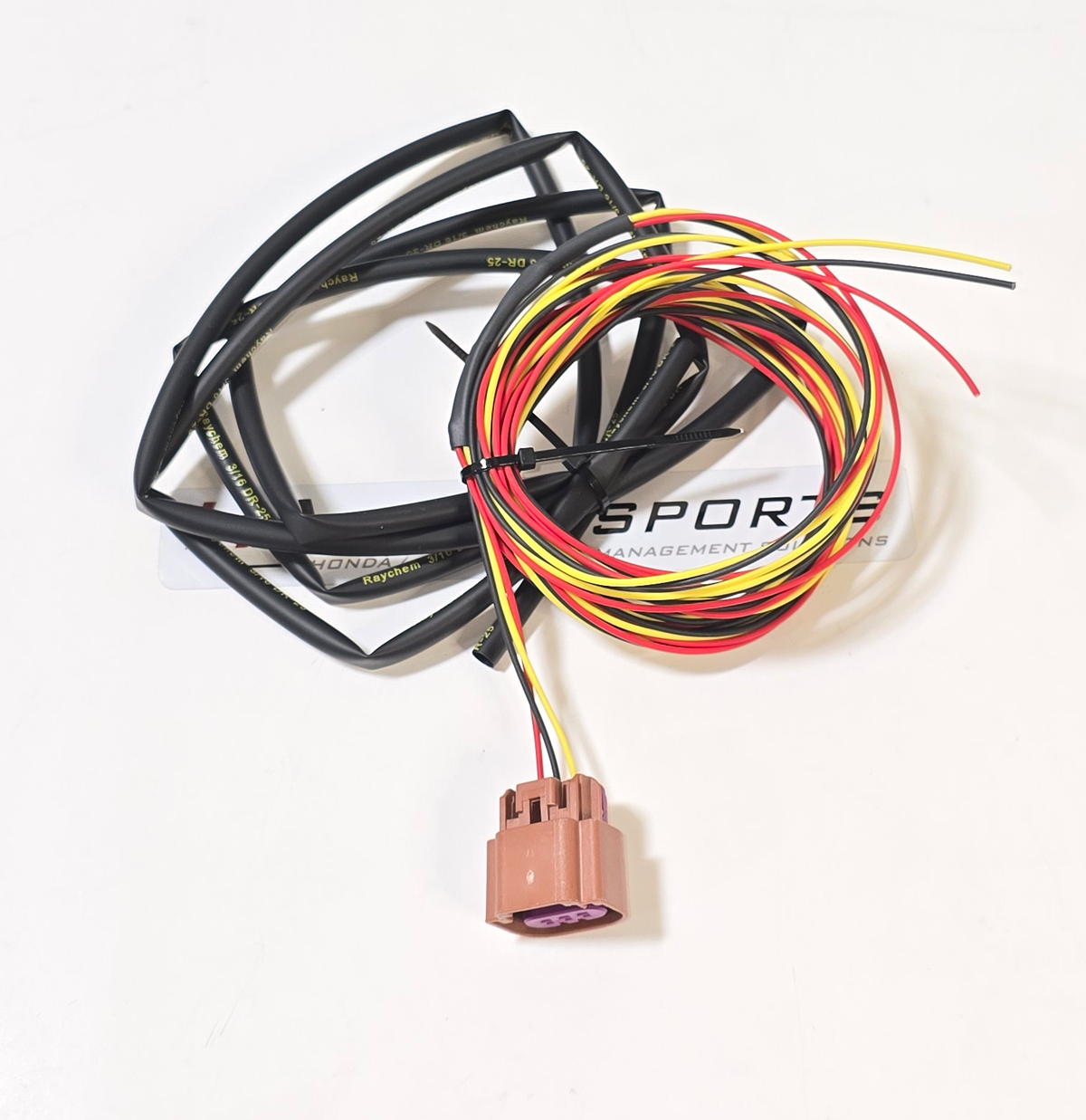

HA Motorsports custom assembled plug-n-play wire harness for use with the HA Motorsports E85 ethanol content sensor. This harness has a built in 2.4k Ohm resistor that is needed for use with the Hondata S300v3, brand new connectors, and 6 feet of wire for easy connection to your S300V3 analog input connector. The harness features color-coded automotive TXL wire that exceeds OEM specifications and is resistant to moisture, grease, oil, gasoline, and most acids and solvents making it very durable for engine compartments.

  • Connect 'VCC' (yellow wire) to switched +12volts
  • Connect 'Gnd' (black wire) to Analog input harness ground (black wire on Analog connector)
  • Connect 'Out' (red wire) to Analog input harness AN0 (red wire on Analog connector) For more information on the Analog input connectors on the S300, see the S300 help guide here: http://www.hondata.com/help/smanager/analog_wiring.htm.
  • Included is 5 feet of Raychem DR-25 heat shrink.  Once you determine the exact length you want the wiring, cut the Raychem heat shrink to the length needed, slide over the wiring, and heat shrink to fit perfectly.
