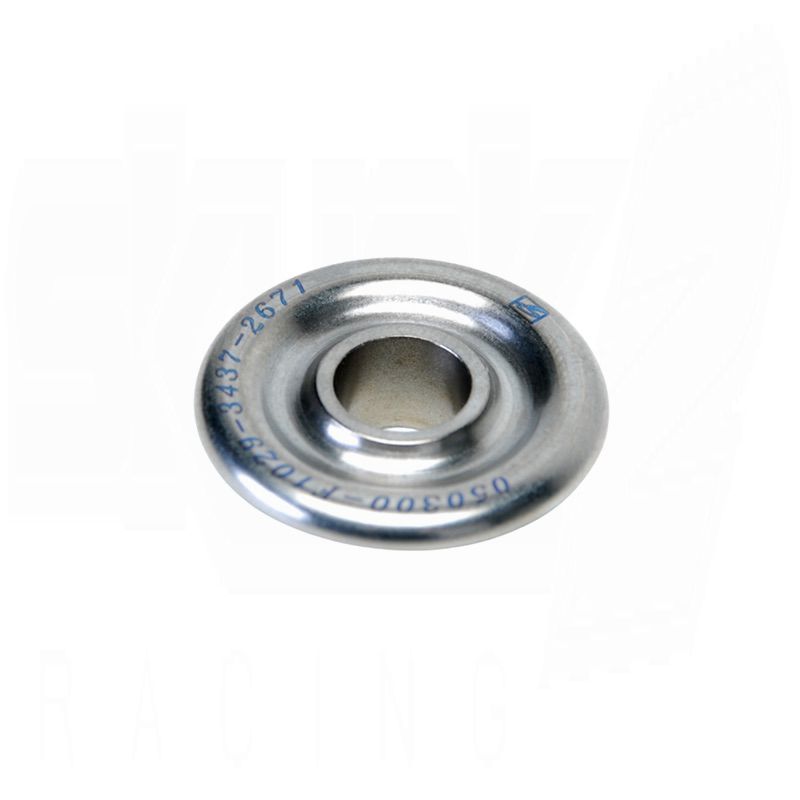

Skunk2’s industry-leading Titanium Retainers for Honda’s B16/ B17/ B18 & H22/ F20B VTEC engines are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Unlink other retainers, Skunk2 Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.

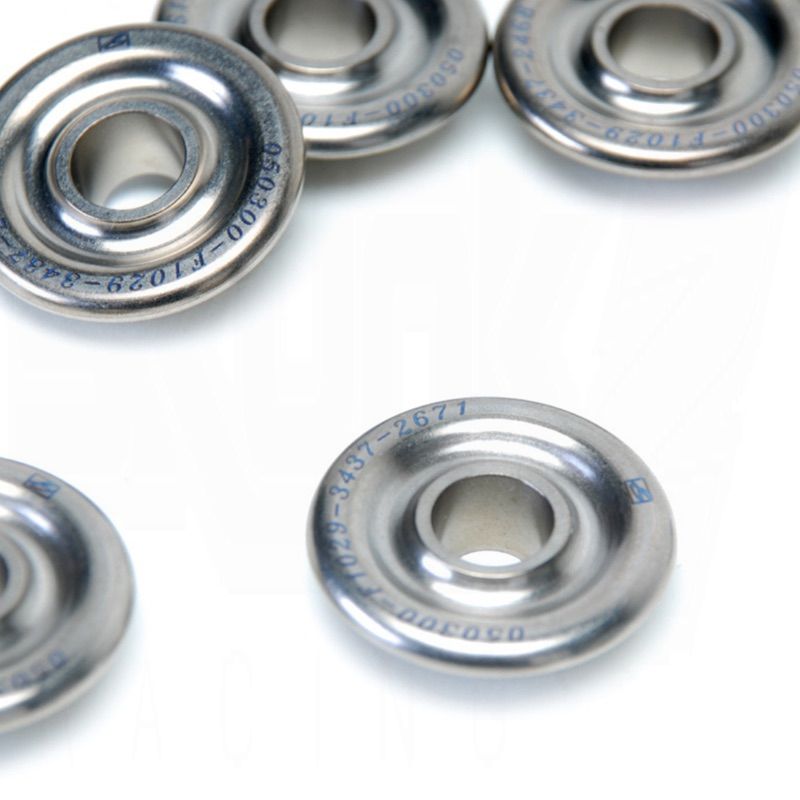

All Skunk2 Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that’s been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each Titanium Retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.
Skunk2 designs, develops, and tests its entire valvetrain lineup in-house to ensure superior quality and maximum performance gains. During development, each valvetrain component is tested both on the dyno and the road, including 11,000 rpm drag racing engines and 17,000 rpm superbikes. Manufactured from the best materials available, Skunk2 valvetrain components provide exceptional performance, reliability, and quality and remain standard-issue on each Skunk2 vehicle that we build and support. Although retainers may appear easy to make, they remain a critical engine component where quality control is crucial. Material flaws and improper machining can result in incorrect valve spring installed heights and potential retainer failures. Skunk2 cautions enthusiasts from using retainers made from companies that claim to have engineering capabilities but do not have practical engine building, CAD modeling, and machining experience.
- 42 percent lighter than OEM steel retainers.
- Pair with Alpha Series or Pro XP Valve Springs for the ultimate valvetrain

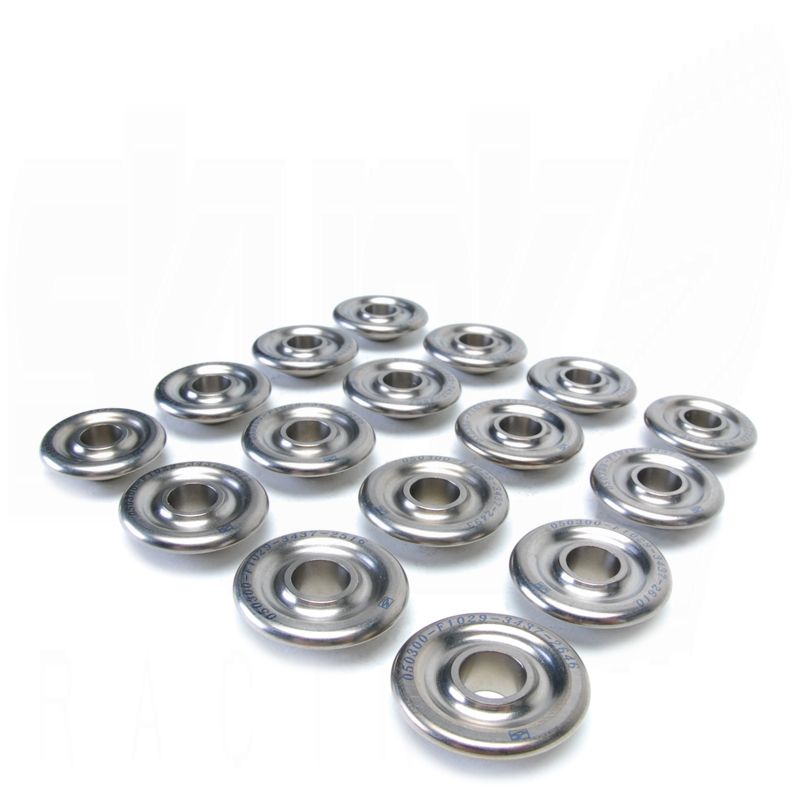

- Sold as a full set of 16 retainers
RECOMMENDATIONS:
- Alpha Series Valve Springs (P/N 311-05-1350)
- Pro XP Valve Springs (P/N 311-05-7350)
Fits the following engines:
B16A/B
B17A
B18C B18C1 B18C5 B18C(R)
F20B DOHC VTEC
H22A H22A1 H22A4
