Hondata S300 V3 / P72 ECU Package

Regular price
Sold out
Sale price
$1,084.00
Unit price
per
Shipping calculated at checkout.

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE.

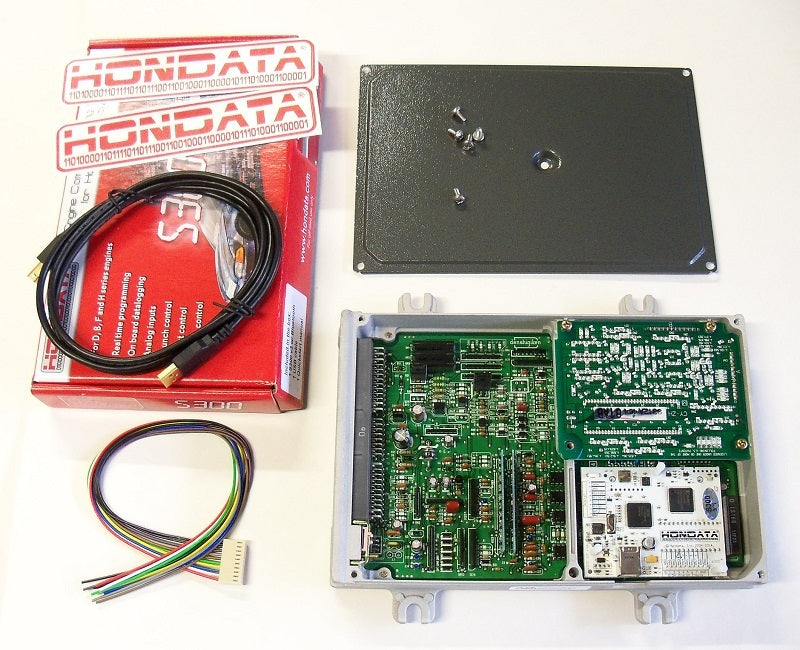

This is our turn-key ECU package for those wanting to use the Hondata S300V3 with OBD1 P72 Integra GSR ECU to tune their car. Includes a specially prepared HA Motorsports OBD1 P72 ECU with full IAB control and knock board for applications with an intake manifold that requires IAB's (ie: GSR, H22, etc). The Hondata S300 system is fully installed into the ECU and completely tested for trouble-free operation.

ECU Casing Option: We have two ECU case options for you to choose from:

  • Standard Case: This is the standard bead-blasted casing. This is a clean, like-new finish to the standard ECU casing. (see photos)

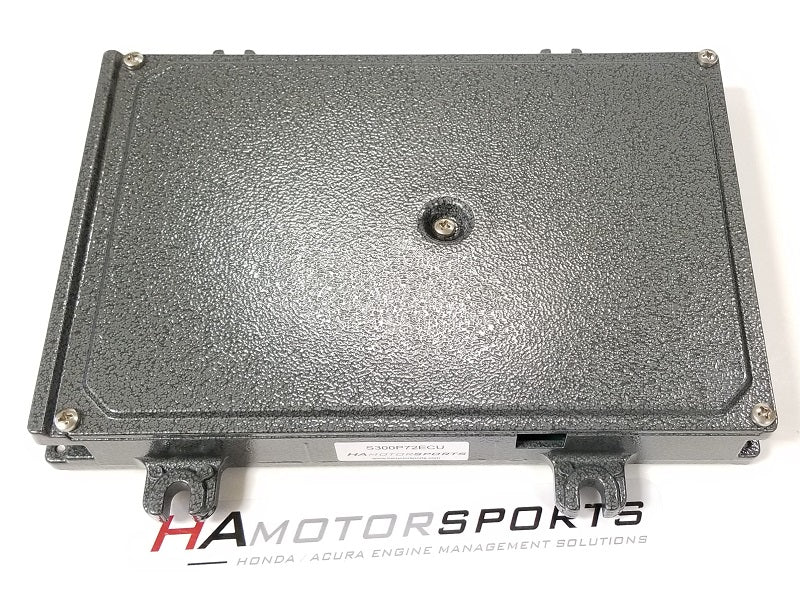

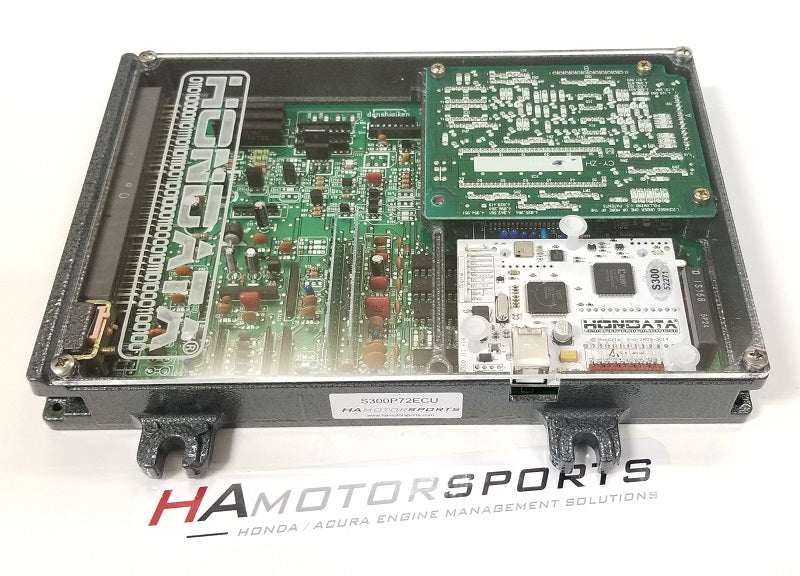

  • Powder Coated Case: This is the new option to have the casing powder coated in our hammertone grey just like the ECU lids. (see photos)

ECU Covers Option: We have two ECU cover/lids options for you to choose from:

  • Standard Covers: This is the standard powder coated grey top and bottom covers.

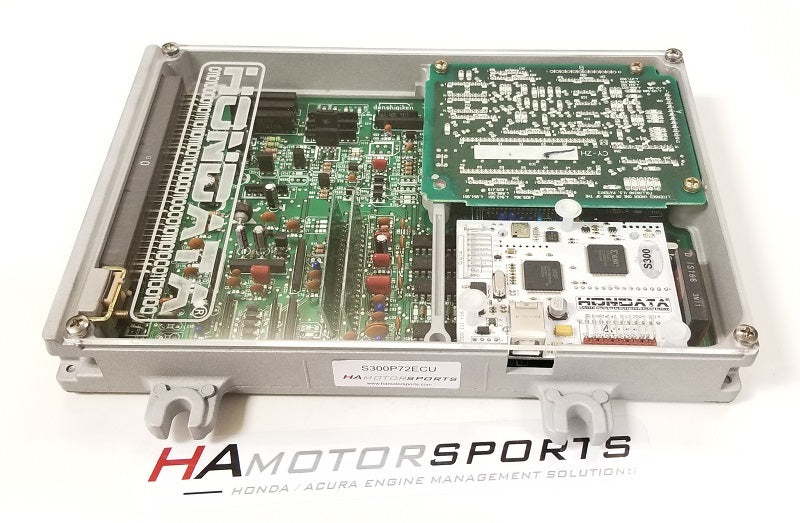

  • Clear Covers:  This is the upgraded clear top and bottom covers.  With this option, we will ship your ECU with the clear lids installed instead of the standard powder coated covers.

PWM Boost Option:  The S300 software allows the control of turbocharger boost pressure when used with an electronic boost control solenoid.  This requires the boost control circuitry to also be added to the ECU board in order to function.

  • No PWM Boost: Choose this option if you do NOT need the PWM boost control circuitry added to your ECU.
  • Add PWM Boost: Choose this option if you want the PWM boost control circuitry in your ECU.  This will allow you to control an electronic boost control solenoid directly through the S300 software.  If you do not need this yet, but would like to use the PWM boost option in the future, add this option now so that it will be in your ECU and ready for use when you need it.

Features:

  • Allows complete engine control and tuning - complete tunability of fuel maps, ignition maps, vtec engagement, two-step rev limit, and so much more!
  • P72 ECU includes knock sensor circuitry to allow further tuning and ability to counter-act detonation/pinging.
  • P72 ECU includes IAB circuit to allow controlling the secondary intake runners on Integra GSR intake manifolds as well as H22, etc.
  • Additional inputs and outputs so the tuning platform can be customized to your engine setup (ie: nitrous control, etc).
  • PWM Boost control can be added to allow boost control directly through the software. Please simply select "ADD PWM BOOST" from the drop-down menu.

Included in this package:

What else do I need to use this ECU?

  • Laptop computer running Windows operating system
  • Internet connection to register the system for first use.

Why choose an HA Motorsports ECU?

  • All HA Motorsports ECU's are produced completely in-house. This allows us to have complete control over the entire production process to make sure you will receive nothing but the best.
  • All HA Motorsports ECU circuit boards are socketed and modified right here in our facility using our quality components, then thoroughly tested on our state-of-the-art testing equipment to ensure complete quality control.
  • All HA Motorsports ECU's receive a full set of new capacitors installed to ensure long term reliability.
  • ECU casings are completely restored to like new condition using our glass bead blasting process.
  • Both upper and lower ECU lids receive a high-strength powder coat treatment for a unique, long lasting finish that will protect against rust and corrosion, and then are finished off with a new set of stainless steel screws.
  • All HA Motorsports ECU's, products, and services include a One Full-Year VIP Warranty.
  • Full product support is available after purchase. Unlike other companies that only want to "make the sale", we stand behind our products. Full product and tech support is available if needed so that you can get the most from your purchase.

**HA Motorsports does not sell Hondata items outside of the United States**
- If you are an international customer and would like to order Hondata products, please see the Hondata dealer list to locate an international dealer.

BLUETOOTH CONNECTIVITY This ECU package includes Bluetooth. Bluetooth connectivity allows wireless datalogging and tuning from a Bluetooth connected laptop computer, or datalog and display engine information directly on your iOS or Android smartphone or tablet with the Hondata Mobile App
