** This custom basemap file/calibration is for motorsport racing use only and not for use on a pollution controlled motor vehicle. **

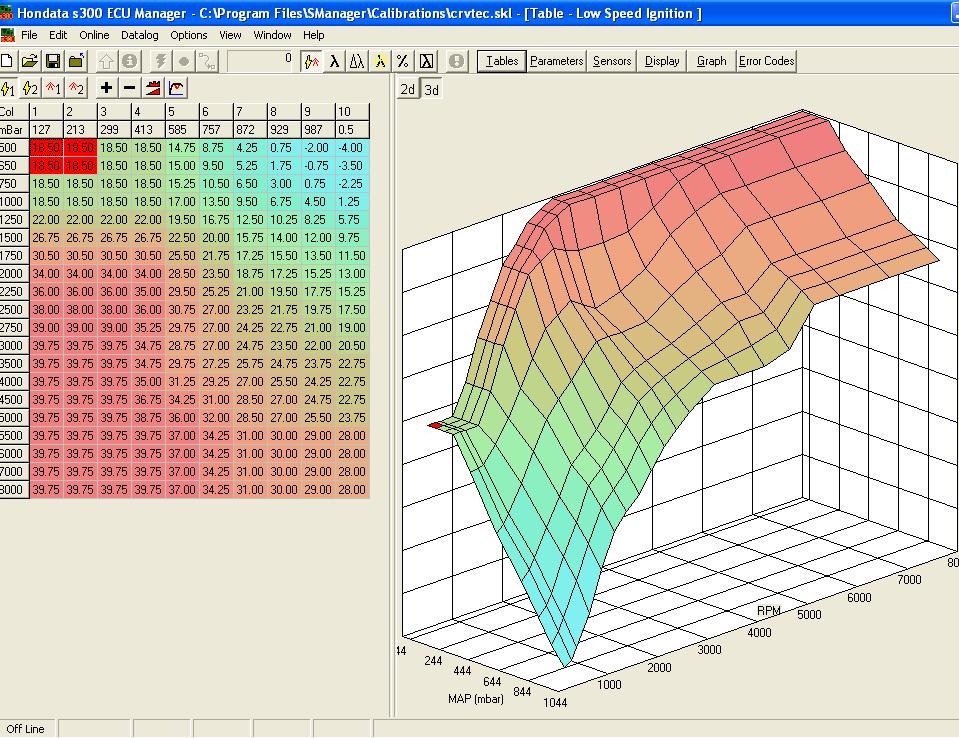

This is our custom basemap calibration file for those who need a basemap for use with Hondata S300 / Smanager. This is compatible with S300 version 1,2, and 3 systems. Fully configurable to your specifications based on our tuning experience with setups similar to yours that you specify. In the comments/notes box at checkout, please provide us with ALL available information about your specific engine setup NOTE: For use with Hondata S300 systems ONLY. Will not work with other tuning software. Our custom basemap program is a BASEMAP only. We have extensive experience developing programming for engines and our basemaps typically run very well, however, it is impossible to develop a final tuned map without having your vehicle here on a dyno for a live tuning session. Due to the large number of factors that affect ECU programming like fuel pressure changes, intake system efficiency, engine wear, engine electrical system condition, etc., we simply cannot guarantee how well your engine will run on our basemaps. This is not to be used as a final tuned program for running your custom engine setup. NOTE: This file will be EMAILED to you within 1 business day. You will NOT receive a tangible copy of the file.
How do I upload the basemap file to my ECU? Please see our guide on How to upload a Hondata S300 basemap file
Engine: Select the engine configuration that most closely matches your engine. If your engine is not listed, simply select "OTHER" and leave the information in the comments box.
Aspiration: Select if your engine is all-motor/na , turbocharged, or supercharged.
Map Sensor: Select the MAP sensor that you are using. This MUST match the map sensor that is on your engine or your car will not run. If your map sensor is not listed, simply select "OTHER" and provide your map sensor information in the comments box.
Fuel Injectors: Select the fuel injectors that you are using. This MUST match the injectors that are installed on your engine or it will run very poorly if it even runs at all. If your injectors are not listed, simply select "OTHER" and provide your fuel injector information in the comments box.
Launch Control RPM: Launch control will set a lower rev limit while the vehicle is not moving to work as a launching RPM. When stopped, you will be able to hold the gas pedal to the floor and only rev to the Launch Control RPM until you let the clutch out and begin moving. Once your car begins moving, the regular rev limit will resume. Your speed sensor MUST be working properly for this to work. If your speed sensor is not functioning, the launch control will be stuck engaged even while moving. We recommend to set the launch control RPM to an RPM that allows your tires to very lightly spin when the clutch pedal is released. If you do not wish to have this feature on your basemap, please select "NO LAUNCH CONTROL" and we will not add this to your program.
VTEC Engagement RPM: This is the RPM at which your VTEC will engage. This should be at an RPM that allows the smoothest transition. If you are unsure about what RPM to use, please select "NOT SURE" and we will set this at the best RPM for you. If you are ordering a basemap for a non-vtec engine, please select "NO VTEC".
REV Limit This should be set to a safe RPM for your engine. A higher REV limit does not necessarily mean more power. Choose a limit that is safe for your engine.
Shift Light: The shift light option will illuminate your check engine light on your dash to serve as an indicator that you are approaching the REV limit. This simply provides an easy way to know when you need to shift to the next higher gear. We recommend setting this 200-400 rpm before the rev limit -or- whatever RPM you'd like to be notified to shift.
Knock Sensor: If your engine has a knock sensor installed AND your ECU has knock sensor circuitry then this can be left enabled. This will simply allow the ECU to retard ignition timing if engine knock/detonation is detected. If you are using an ECU that does not have knock sensor circuitry (ie: P28) then this should be set to "DISABLED".
ELD: This is the Electronic Load Detector. This allows the ECU to detect when an electrical load is placed on the engine (ie: head lights turned on) and raise the idle speed. If you are working on an OBD0 platform (90-91 integra, 88-91 civic/crx) then this should be disabled. Most other platforms can leave this enabled, but will not cause any major problem if left disabled.
Oxygen Sensor: If you have a functioning oxygen sensor installed and would like the ECU to use O2 sensor feedback for emissions, etc. then this can be set to "ENABLED". If you do not want the ECU to use O2 feedback, or you do not have a functioning O2 sensor installed, select "DISABLED". This can typically be left as "DISABLED" on any setup without any problems.
Oxygen Sensor Heater Circuit: The O2 sensor heater circuit allows faster response from the O2 sensor to begin using O2 feedback. If you are using a one wire O2 sensor, leave this as "DISABLED". If you are using a 4 wire O2 sensor and would like this on for emissions purposes, the select "ENABLED".
QUESTIONS & ANSWERSAsk a Question
How long is it safe to run without any boost on this? Its a pretty long drive to the nearest hondata tuner
This is best explained in this article: https://www.hamotorsports.com/pages/what-is-a-basemap
Hello, do you basemap for s300 b16 turbo ethanol (e85)? Thank you
Yes, just be sure to write in the comments box if you are running full time E85, or if it is a flex-fuel setup. Due to the wide variance in ethanol content in E85, you can expect to need to do fuel trim adjustments on the basemap file on startup. Thanks,
how long dose it take to get base map
This file will be EMAILED to you within 1 business day. You will NOT receive a tangible copy of the file.
if I purchase the s300 base map an for some reason I am wrong on some information or it runs poorly will yall adjust the tune an send it back or would I have to purchase a new one
Our S300 custom basemap file is a basemap only that we configure based on your engine setup details that you provide when placing your order. This does not include any further tuning or parameter/setting changes after you receive the basemap file. However, if after initial testing you find that you need to change some settings (ie: launch control RPM, rev limit, etc.) you can always make these changes yourself to the basemap file using the smanager/S300 software.
